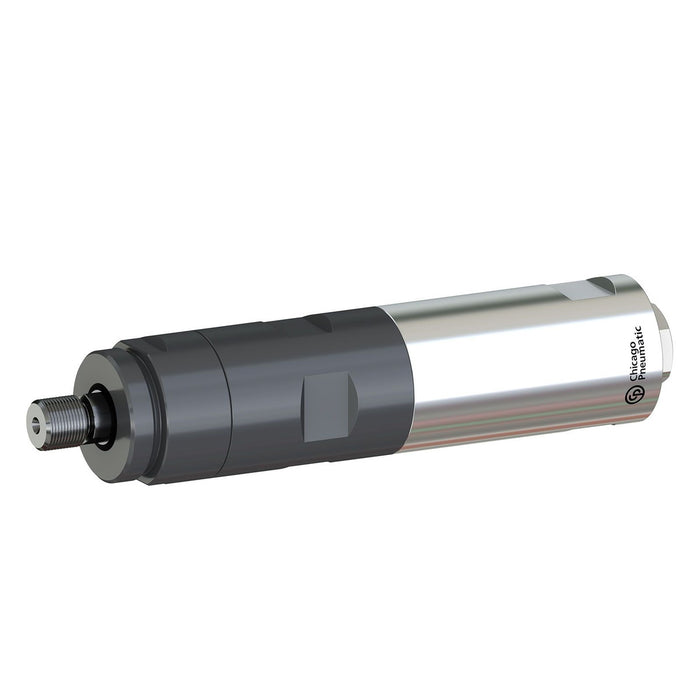

Chicago Pneumatic M84-4000-T-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481434
The Chicago Pneumatic M84-4000-T-ATEX delivers reliable, explosion-safe rotary power for demanding industrial environments where safety certification is non-negotiable. Engineered as a non-reversible vane air motor producing 840 W of output power, this unit is purpose-built for integration into machinery and automated systems operating in hazardous atmospheres. Its ATEX certification makes it the go-to pneumatic motor for petrochemical, pharmaceutical, and offshore applications where ignition risk must be eliminated without compromising performance. Powered entirely by compressed air, the M84-4000-T-ATEX draws on the same dependable vane technology found across Chicago Pneumatic's professional air tools lineup, offering consistent torque delivery and smooth operation throughout the duty cycle. Air consumption at load reaches 16 l/s, matched by a maximum power air flow of 16 l/s, ensuring the motor performs efficiently when paired with an adequately sized compressed air supply. The 3/8-inch BSP air inlet thread integrates cleanly with standard industrial pneumatic systems, simplifying installation and reducing downtime during commissioning. As a true air motor rather than a handheld pneumatic die grinder, this unit is designed for fixed or semi-fixed machine mounting rather than manual operation. It suits conveyor drives, actuator systems, mixing equipment, and process machinery in classified hazardous zones. Engineers specifying ATEX-rated pneumatic motor solutions for Zone 1 or Zone 2 environments will find the M84-4000-T-ATEX an immediately practical and compliance-ready choice.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 16 l/s
- Air flow max power: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 4000 rpm
- Minimum starting torque: 6.1 Nm
- Stall torque: 7.6 Nm
- Torque at max power: 3.8 Nm
- Max output power: 0.8 kW
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: No
- Output Spindle Thread: 1/2-13 UNC
- Rotation drive: Clockwise
- Shaft loading code: e
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 1.2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
