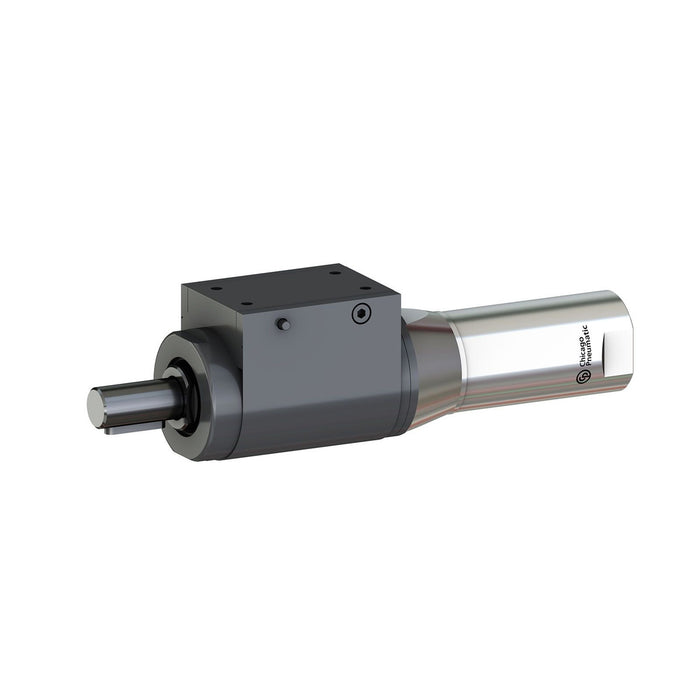

Chicago Pneumatic M84-300-K-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479194
The Chicago Pneumatic M84-300-K-ATEX delivers reliable, explosion-safe rotary power for demanding industrial environments where standard electric motors simply cannot operate. Engineered as a certified ATEX-compliant pneumatic motor, this non-reversible vane air motor produces 840 W of consistent output power, making it an ideal choice for facilities handling flammable gases, vapours, or combustible dust atmospheres. Driven entirely by compressed air, the M84-300-K-ATEX operates with an air consumption at load of 16 l/s and a maximum air flow at peak power also rated at 16 l/s, ensuring the unit performs predictably under sustained workloads. The 3/8-inch BSP air inlet thread provides straightforward integration into existing pneumatic systems, keeping installation clean and efficient without the need for additional adapters in most setups. As a non-reversible vane-type air motor, the unit converts compressed air energy into smooth, continuous rotational force - a principle that makes vane-style pneumatic motors inherently simple to maintain and highly tolerant of harsh operating conditions compared to electric alternatives. The absence of electrical components eliminates ignition risk, which is precisely why ATEX-rated air tools and pneumatic motors are the preferred specification in petrochemical plants, offshore platforms, grain handling facilities, and paint finishing operations. Whether powering conveyor systems, agitators, mixers, or specialist air powered machinery in Zone 1 or Zone 2 classified areas, the Chicago Pneumatic M84-300-K-ATEX gives engineers and procurement teams a dependable, code-compliant drive solution built for long-term service in safety-critical applications.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 16 l/s
- Air flow max power: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 300 rpm
- Minimum starting torque: 77 Nm
- Stall torque: 95 Nm
- Torque at max power: 48 Nm
- Max output power: 0.8 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Clockwise
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 16 mm
- Weight: 2.7 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
