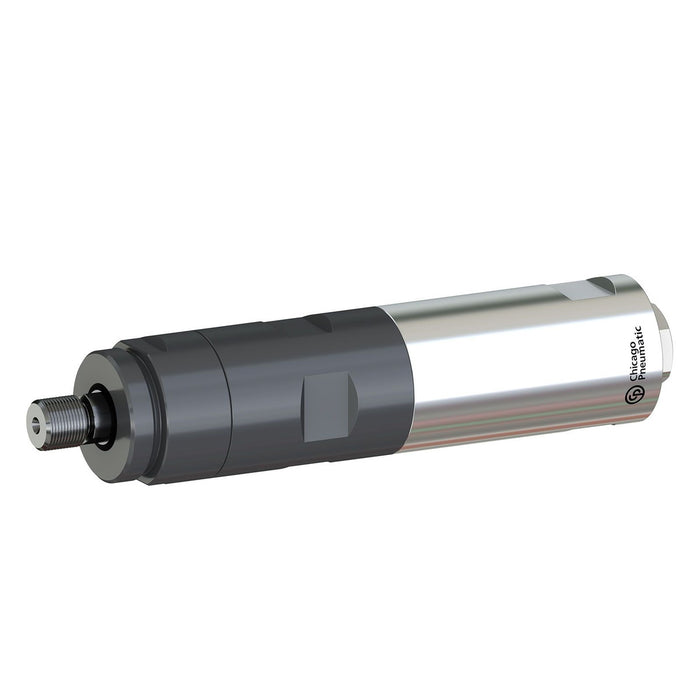

Chicago Pneumatic M84-2400-T-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481444
The Chicago Pneumatic M84-2400-T-ATEX delivers reliable, explosion-proof performance where workplace safety and consistent power output are non-negotiable. Engineered as a non-reversible vane air motor producing 840 W of continuous power, this pneumatic motor is purpose-built for hazardous industrial environments requiring ATEX-certified equipment. Its robust vane design ensures smooth, efficient operation, making it a trusted choice for facilities where conventional electric motors pose unacceptable risks. Powered entirely by compressed air, the M84-2400-T-ATEX operates at an air consumption of 16 l/s at load, with maximum air flow also rated at 16 l/s, ensuring predictable and stable performance under demanding conditions. The 3/8-inch BSP air inlet thread allows straightforward integration into existing pneumatic systems, reducing installation complexity and downtime. As a dedicated air motor, it eliminates the heat and ignition hazards associated with electrical alternatives, offering a genuinely safer solution without sacrificing output. The unit's non-reversible configuration makes it ideally suited to applications requiring consistent unidirectional torque, such as conveyor drives, mixing equipment, and specialised industrial machinery. Facilities operating in petrochemical, pharmaceutical, or grain-handling environments will find the ATEX classification particularly valuable, meeting stringent regulatory standards without compromise. Whether used as a standalone drive unit or integrated into a larger pneumatic system, the Chicago Pneumatic M84-2400-T-ATEX provides the dependability and safety assurance that demanding industrial operations require.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 16 l/s
- Air flow max power: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 2400 rpm
- Minimum starting torque: 10 Nm
- Stall torque: 12.6 Nm
- Torque at max power: 6.3 Nm
- Max output power: 0.8 kW
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: No
- Output Spindle Thread: 1/2-13 UNC
- Rotation drive: Clockwise
- Shaft loading code: e
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 1.2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
