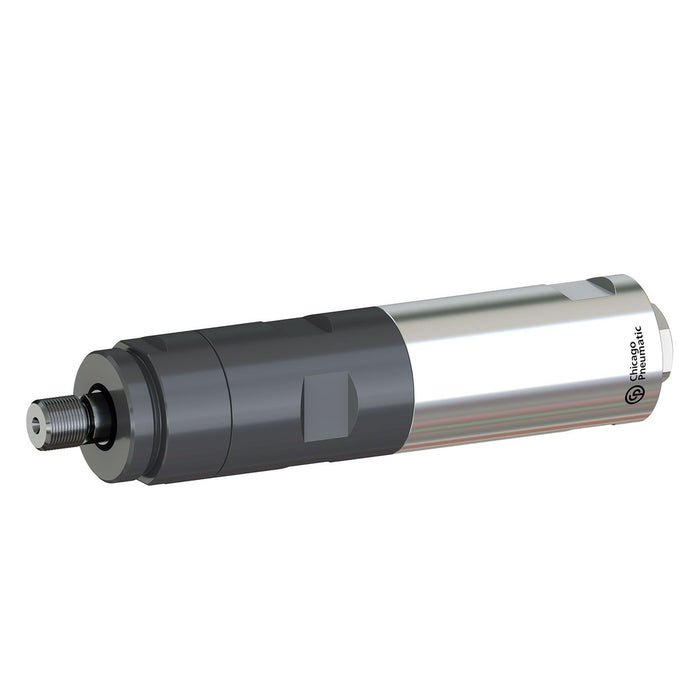

Chicago Pneumatic M84-20000-T-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481414
The Chicago Pneumatic M84-20000-T-ATEX delivers reliable, high-performance operation in environments where safety and power must coexist without compromise. Engineered as a certified ATEX-rated pneumatic motor, this non-reversible vane air motor produces a robust 840 W of power, making it an outstanding choice for industrial applications that demand consistent output and explosion-proof integrity. Drawing on 16 l/s air consumption at load with a maximum airflow of 16 l/s, this air motor is optimised to deliver peak performance when connected to a properly sized compressed air supply. The 3/8-inch BSP air inlet thread ensures straightforward integration into standard pneumatic systems, reducing installation complexity and downtime. The vane-style motor mechanism provides smooth, continuous rotation with excellent torque characteristics that pneumatic motor users consistently rely on in demanding production settings. As a professional-grade air tool built to Chicago Pneumatic's exacting standards, this unit is particularly well-suited for use in potentially explosive atmospheres such as chemical processing plants, oil and gas facilities, and paint finishing environments. The ATEX certification gives engineers and safety officers the confidence to deploy this pneumatic motor where conventional tools would pose an unacceptable risk. Whether integrated into automated machinery or used as a drive unit for custom tooling applications, the Chicago Pneumatic M84-20000-T-ATEX combines dependable air-powered performance with the safety credentials required by modern industrial compliance standards.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 16 l/s
- Air flow max power: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 20000 rpm
- Minimum starting torque: 1.2 Nm
- Stall torque: 1.48 Nm
- Torque at max power: 0.74 Nm
- Max output power: 0.8 kW
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: No
- Output Spindle Thread: 1/2-13 UNC
- Rotation drive: Clockwise
- Shaft loading code: e
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 1.2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
