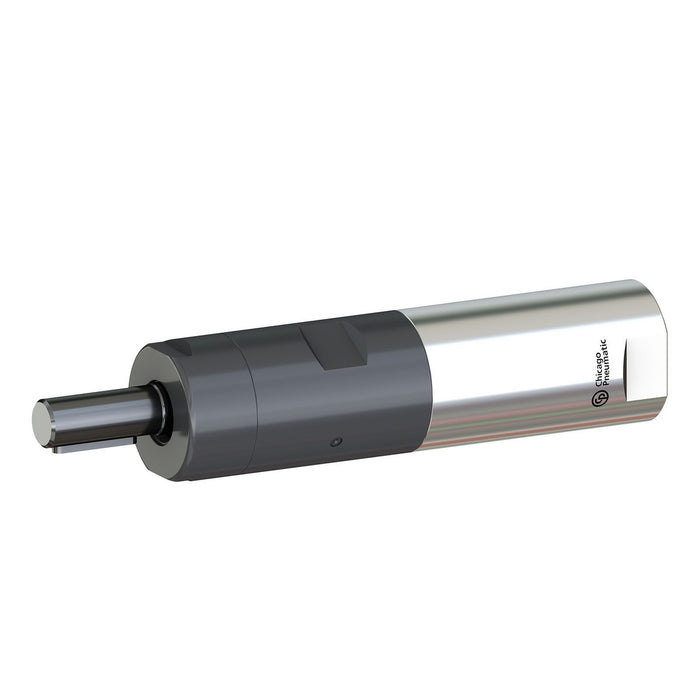

Chicago Pneumatic M84-1400-K-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479164
The Chicago Pneumatic M84-1400-K-ATEX delivers reliable, explosion-safe rotary power for demanding industrial environments where safety compliance is non-negotiable. Engineered as a robust pneumatic motor rated at 840 W, this non-reversible vane air motor offers consistent performance across continuous-duty applications, making it a trusted choice for facilities operating in ATEX-classified hazardous zones. Powered entirely by compressed air, the M84-1400-K-ATEX consumes 16 l/s at load, with maximum air flow at peak power also rated at 16 l/s, ensuring predictable energy management and straightforward integration into existing compressed air systems. The 3/8-inch BSP air inlet thread provides a secure, leak-resistant connection compatible with standard industrial pneumatic tooling infrastructure, reducing installation complexity and downtime. As a vane-type air motor, this unit benefits from the inherent simplicity and low maintenance characteristics that make pneumatic motors a preferred alternative to electric drives in spark-sensitive or washdown environments. Its non-reversible configuration suits applications requiring controlled, unidirectional torque output, offering engineers a dependable solution for powering conveyors, agitators, actuators, and specialty machinery. Whether integrated as a core drive component or used to power air tools in process automation, the Chicago Pneumatic M84-1400-K-ATEX is ideally suited for petrochemical plants, pharmaceutical manufacturing, grain handling, and other industries where ATEX compliance and the rugged reliability of pneumatic motor technology are essential operational requirements.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 16 l/s
- Air flow max power: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 1400 rpm
- Minimum starting torque: 17 Nm
- Stall torque: 21 Nm
- Torque at max power: 10.5 Nm
- Max output power: 0.8 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Clockwise
- Shaft loading code: e
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 16 mm
- Weight: 1.3 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
