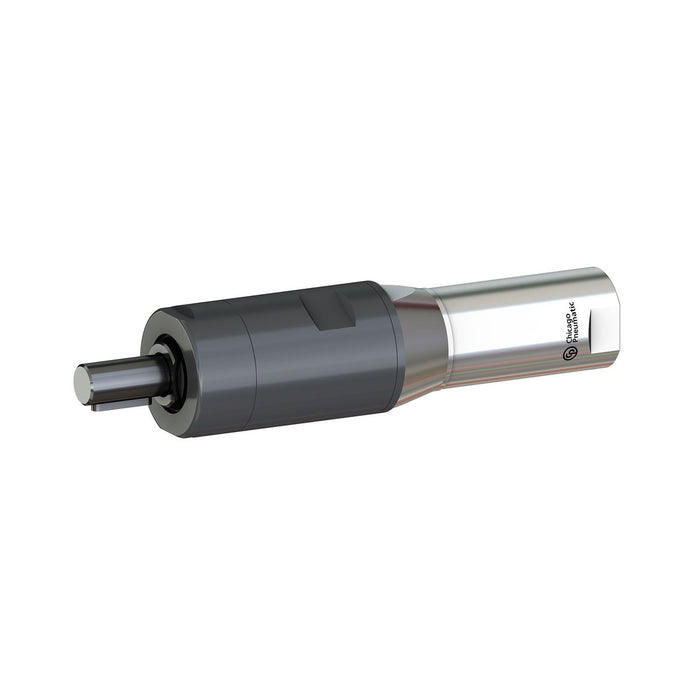

Chicago Pneumatic M84-115-K-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479214
Delivering consistent rotational power in hazardous environments where electrical motors simply cannot operate safely, the Chicago Pneumatic M84-115-K-ATEX non-reversible vane air motor offers industrial operators a reliable and certified solution for demanding applications. Rated at 840 W of output power, this compact yet capable pneumatic motor is purpose-built to perform under continuous load conditions where precision and durability are non-negotiable. Engineered to ATEX certification standards, this air motor is specifically designed for use in explosive atmospheres, making it an essential choice for petrochemical, mining, and offshore industries. The unit draws 16 litres per second of air consumption at load, with the same airflow rating at maximum power, ensuring predictable and stable performance throughout the operating cycle. Connection is straightforward via a 3/8-inch BSP air inlet thread, compatible with standard pneumatic supply lines found across industrial facilities worldwide. As a non-reversible vane air motor, the CP M84-115-K-ATEX provides smooth, directional torque delivery ideal for driving conveyors, agitators, fans, and ancillary machinery in classified zones. Unlike conventional air tools such as a pneumatic die grinder, this motor is designed for integration into larger mechanical assemblies rather than handheld use, giving engineers a versatile power source where electricity presents an unacceptable risk. It suits OEM builders and maintenance teams seeking a certified, low-maintenance pneumatic motor solution for Zone 1 and Zone 2 rated environments.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 16 l/s
- Air flow max power: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 115 rpm
- Minimum starting torque: 201 Nm
- Stall torque: 248 Nm
- Torque at max power: 124 Nm
- Max output power: 0.8 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Clockwise
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 16 mm
- Weight: 2.7 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
