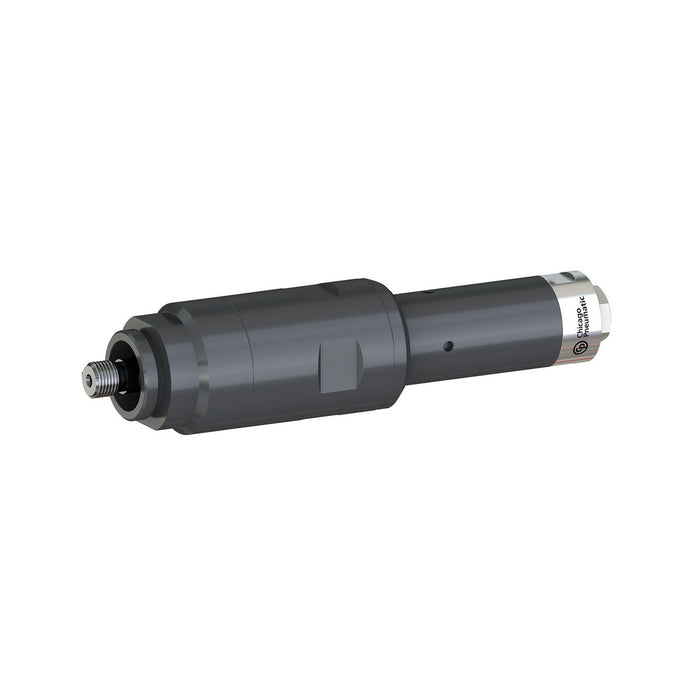

Chicago Pneumatic M3901-70-TL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481614
Delivering exceptional reliability in hazardous environments, the Chicago Pneumatic M3901-70-TL-ATEX non-reversible vane air motor offers industrial operators a robust 390 W power output within a compact, safety-certified design. Built to meet stringent ATEX certification requirements, this pneumatic motor is engineered for facilities where explosive atmospheres demand uncompromising performance without sacrificing operational efficiency. Weighing just 2.6 kg, the M3901-70-TL-ATEX combines impressive power density with a back head coaxial configuration, making integration into existing machinery straightforward for maintenance engineers and OEM system designers alike. The motor delivers a commanding stall torque of 220 Nm and a minimum starting torque of 200 Nm, ensuring consistent, powerful starts even under load. At maximum power, torque reaches 110 Nm, providing smooth, dependable output throughout the full operating cycle. As a non-reversible vane air motor, this unit utilises proven pneumatic motor technology that offers inherent variable speed control, long service intervals, and excellent resistance to overloading - qualities that make Chicago Pneumatic air tools the preferred choice across petrochemical, pharmaceutical, and mining industries. The vane-type design ensures efficient air-to-power conversion, reducing compressed air consumption while maintaining peak output. The Chicago Pneumatic M3901-70-TL-ATEX is ideally suited for driving conveyor systems, agitators, hoists, and automated production line equipment operating within Zone 1 and Zone 2 classified hazardous areas where a dependable, explosion-proof air motor is a non-negotiable operational requirement.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Weight: 2.6 kg
- Minimum starting torque: 200 Nm
- Stall torque: 220 Nm
- Torque at max power: 110 Nm
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 5/8-16 UNF
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Threaded shaft
- Starting system: None
- Max output power: 0.4 kW
- Certifications, standards & directives: ATEX
- Max free speed range: 70 rpm
- Safety: Index of protection (IP code)
- Air consumption at load: 8.1 l/s
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
-
New Grade - 24 Months Warranty from purchase is available on this product.
