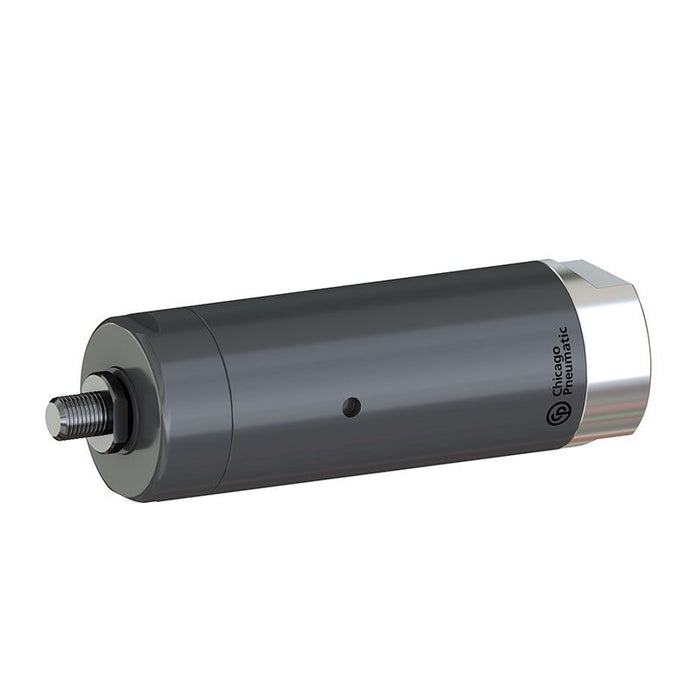

Chicago Pneumatic M3901-520-TL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481694
The Chicago Pneumatic M3901-520-TL-ATEX reversible air motor delivers a dependable 400 W of continuous power output, making it one of the most versatile pneumatic motor solutions available for demanding industrial environments. Engineered to perform where reliability is non-negotiable, this ATEX-certified unit is purpose-built for use in potentially explosive atmospheres, giving facilities managers and engineers the confidence to operate safely in hazardous zones without sacrificing performance. Running at a precise 520 RPM, the motor maintains consistent torque characteristics that suit a wide range of pneumatic motor-driven applications, from material handling equipment to custom-built production machinery. The reversible functionality adds flexibility, allowing operators to adapt direction without additional tooling or complex mechanical changes. Air consumption at load sits at an efficient 8.1 l/s, balancing power delivery against compressed air usage to keep operational costs manageable across extended shift patterns. With an IP66 ingress protection rating, the M3901-520-TL-ATEX stands up to powerful water jets and dust ingress, making it equally suited to wash-down environments and heavy manufacturing floors. The robust construction reflects Chicago Pneumatic's long-standing reputation for producing air tools that endure the toughest conditions. Whether integrated as a core drive unit in automated systems, adapted for air motor-powered conveyors, or used to replace underperforming pneumatic motor assemblies in existing equipment, this motor brings lasting industrial-grade reliability to every application it powers. Product Features: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Index of protection (IP code): IP66
- Air consumption at load: 8.1 l/s
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Max free speed range: 520 rpm
- Minimum starting torque: 26 Nm
- Stall torque: 28 Nm
- Torque at max power: 14.2 Nm
- Max output power: 0.4 kW
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 5/8-16 UNF
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 1.02 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
