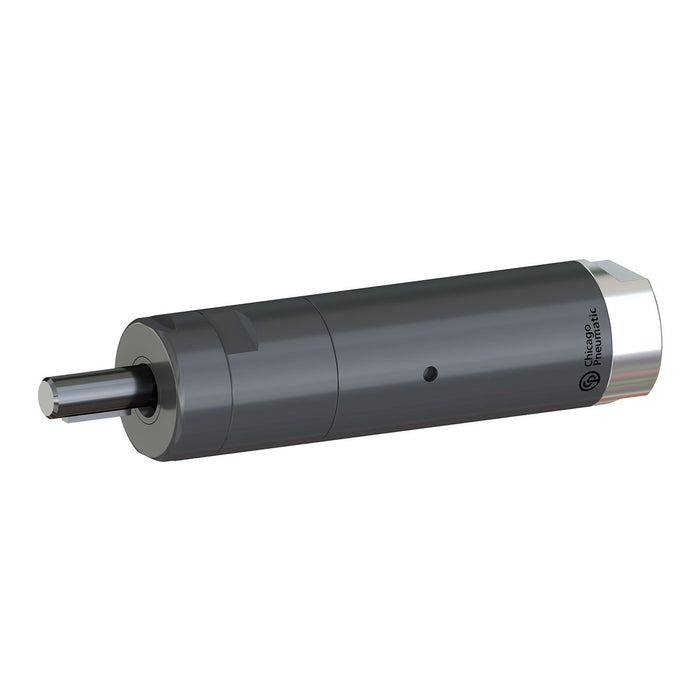

Chicago Pneumatic M39-520-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478634
Delivering dependable rotary power in environments where electrical ignition risks cannot be tolerated, the Chicago Pneumatic M39-520-KL-ATEX non-reversible vane air motor offers 390 W of consistent output for demanding industrial applications. Built to ATEX certification standards, this pneumatic motor is engineered specifically for use in hazardous locations such as petrochemical plants, offshore platforms, and solvent-heavy manufacturing facilities where explosive atmospheres may be present. The motor operates with an air consumption of 8.1 l/s at load, matched precisely to its maximum power airflow of 8.1 l/s, ensuring efficient energy use without unnecessary waste. The 1/4-inch BSP air inlet thread provides straightforward integration into existing compressed air systems commonly found across European and international industrial sites, reducing installation complexity and downtime. As a non-reversible vane-type air motor, the M39-520-KL-ATEX delivers smooth, consistent torque in a single rotational direction, making it an ideal prime mover for conveyor drives, agitators, pumps, and light machinery automation. Unlike electrically powered alternatives, this pneumatic motor produces no heat buildup or spark risk, giving safety engineers complete peace of mind in classified zones. This air motor is the right choice for maintenance teams and OEM integrators seeking a compact, explosion-safe pneumatic power solution with proven Chicago Pneumatic reliability, whether retrofitting legacy equipment or specifying drive units for new ATEX-compliant production lines.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 8.1 l/s
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 520 rpm
- Minimum starting torque: 26 Nm
- Stall torque: 28 Nm
- Torque at max power: 14.2 Nm
- Max output power: 0.4 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 12 mm
- Weight: 1.02 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
