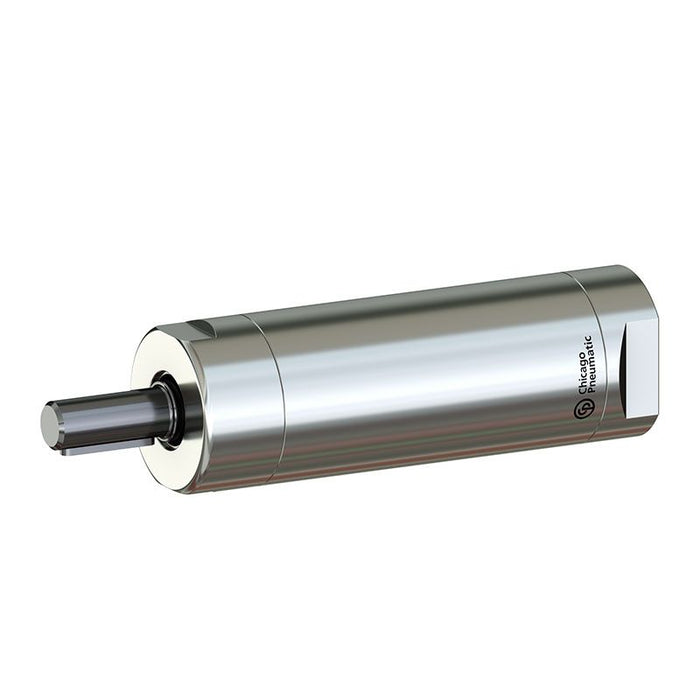

Chicago Pneumatic M39-2400-KSL-ATEX, ATEX Non-Reversible Stainless Steel Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478814
Delivering reliable, explosion-safe rotary power in the most demanding industrial environments, the Chicago Pneumatic M39-2400-KSL-ATEX reversible air motor offers a compelling combination of performance and compliance for hazardous location applications. Rated to ATEX certification standards, this pneumatic motor is purpose-built for facilities where flammable gases, vapours, or dust present a constant safety challenge, giving engineers and procurement teams confidence that their equipment meets stringent international directives without sacrificing productivity. At the heart of this air motor sits a maximum free speed of 2400 rpm and a peak output power of 0.4 kW, making it well suited to driving light machinery, actuating valves, or powering conveyor systems in process industries. Air consumption at maximum load measures 8.1 l/s, a figure that allows facility managers to size compressed air infrastructure accurately and avoid costly over-specification. The reversible operation adds genuine versatility, enabling the same unit to handle both clockwise and counter-clockwise drive requirements without reconfiguration or additional equipment investment. Built on Chicago Pneumatic's established pneumatic motor engineering heritage, the M39-2400-KSL-ATEX integrates smoothly into existing compressed air tool networks and sits comfortably alongside vane-type air tools already operating on-site. Its compact form factor and straightforward mounting interface make installation accessible across a wide range of equipment configurations. This unit is the definitive choice for chemical processing plants, offshore platforms, and pharmaceutical manufacturing facilities requiring certified, dependable rotary air power in Zone 1 and Zone 2 classified areas. Product Features: Designed with limited retention areas on the housing and double viton nose seals to prevent contamination risk Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max free speed range: 2400 rpm
- Max output power: 0.4 kW
- Air consumption at load: 8.1 l/s
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Minimum starting torque: 6.1 Nm
- Stall torque: 6.4 Nm
- Torque at max power: 3.2 Nm
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Stainless steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Keyed shaft
- Starting system: None
- Index of protection (IP code): IP69,IP66,IP68
- Output Spindle size: 12 mm
- Weight: 0.95 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
