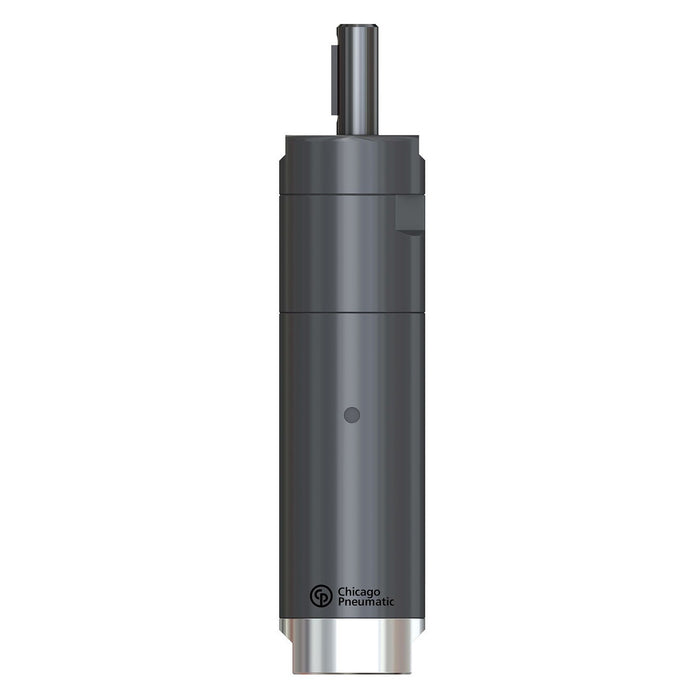

Chicago Pneumatic M39-2400-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478604
Delivering reliable rotary power in hazardous environments, the Chicago Pneumatic M39-2400-KL-ATEX Non-Reversible Vane Air Motor offers industrial operators a certified solution where electrical equipment simply cannot be used safely. Rated at 390 W, this compact yet capable pneumatic motor provides consistent output for demanding continuous-duty applications, making it a trusted choice across petrochemical, mining, and offshore industries where ATEX compliance is non-negotiable. The M39-2400-KL-ATEX draws on the proven efficiency of vane air motor technology, consuming 8.1 l/s of air at load - a figure that aligns with its maximum air flow rating, ensuring predictable performance across a range of pneumatic drive systems. The 1/4-inch BSP inlet thread integrates cleanly into standard compressed air networks, simplifying installation and reducing the need for additional adapters in most workshop or site setups. As a non-reversible air motor, this unit is purpose-built for unidirectional drive tasks, delivering steady torque without the complexity of reversing mechanisms. Whether powering conveyor systems, actuating process equipment, or driving custom pneumatic tooling rigs, it functions with the dependability Chicago Pneumatic has built its reputation on. Engineers specifying an air motor or pneumatic motor for ATEX Zone 1 or Zone 2 environments will find this model meets stringent safety standards without sacrificing performance. It is equally well-suited to OEM integration where a certified, explosion-safe power source is essential to safe plant operation.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 8.1 l/s
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 2400 rpm
- Minimum starting torque: 6.1 Nm
- Stall torque: 6.4 Nm
- Torque at max power: 3.2 Nm
- Max output power: 0.4 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 12 mm
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
