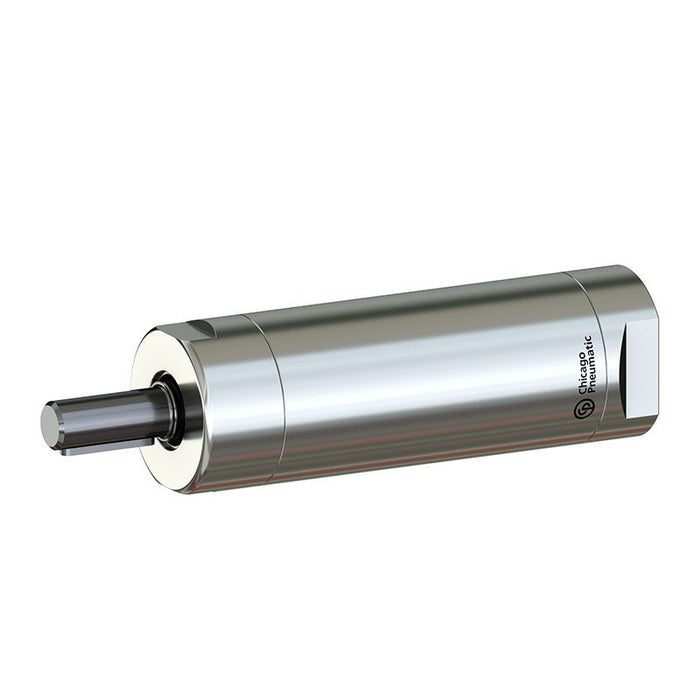

Chicago Pneumatic M39-1180-KSL-ATEX, ATEX Non-Reversible Stainless Steel Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478824
Delivering reliable, explosion-safe rotational power in demanding industrial environments, the Chicago Pneumatic M39-1180-KSL-ATEX reversible air motor is purpose-built for applications where safety and precision cannot be compromised. ATEX-certified and designed to operate in potentially explosive atmospheres, this pneumatic motor gives engineers and plant operators the confidence to run continuous processes without concern for hazardous ignition risks. Producing a maximum output power of 0.4 kW at a free speed of 1180 rpm, the M39-1180-KSL-ATEX delivers consistent, controllable torque across a wide range of integrated machine and automation applications. The air motor draws a maximum airflow of 8.1 l/s and connects easily via a 1/4-inch air inlet thread, making integration into existing pneumatic systems straightforward and efficient. Its reversible operation adds further versatility, allowing bidirectional drive without additional mechanical components. As a compact yet capable air motor, it operates cleanly with no electrical components in the drive unit itself, reducing maintenance overhead and eliminating the risk of electrical faults in sensitive zones. The pneumatic motor's robust construction reflects Chicago Pneumatic's longstanding reputation for durable, high-performance air tools engineered for heavy industry. The Chicago Pneumatic M39-1180-KSL-ATEX is ideally suited for use in chemical processing plants, oil and gas facilities, offshore platforms, and any classified hazardous area where dependable ATEX-rated pneumatic power is essential to safe and productive operations. Product Features: Designed with limited retention areas on the housing and double viton nose seals to prevent contamination risk Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max free speed range: 1180 rpm
- Max output power: 0.4 kW
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Minimum starting torque: 12 Nm
- Stall torque: 12.8 Nm
- Torque at max power: 6.4 Nm
- Main Material type: Stainless steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Keyed shaft
- Index of protection (IP code): IP68,IP66,IP69
- Output Spindle size: 12 mm
- Weight: 1.2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
