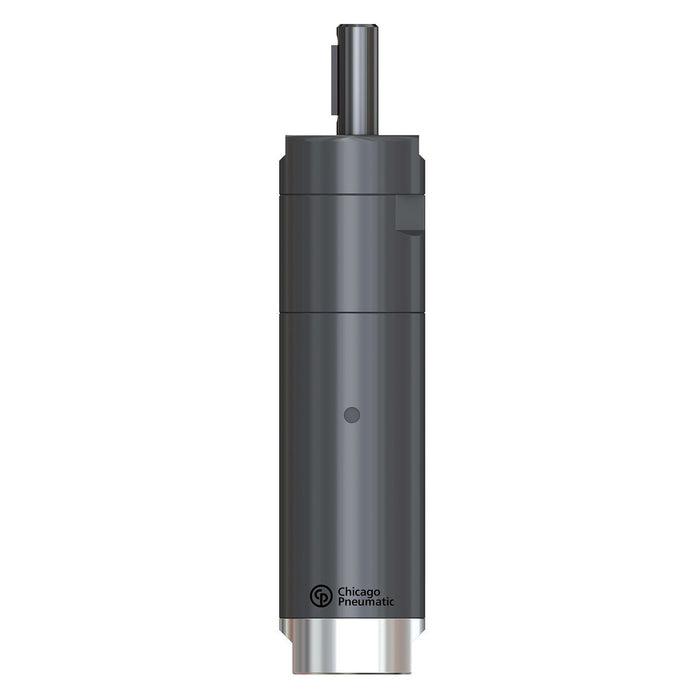

Chicago Pneumatic M39-1180-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478614
Engineered for demanding industrial environments where safety and performance are non-negotiable, the Chicago Pneumatic M39-1180-KL-ATEX delivers 390 W of reliable power through a compact non-reversible vane air motor design that meets rigorous ATEX certification standards for use in potentially explosive atmospheres. This pneumatic motor represents a premium solution for facilities requiring certified air-powered equipment without compromising on output or durability. Drawing 8.1 l/s of air consumption both at load and at maximum power, the M39-1180-KL-ATEX maintains consistent, predictable performance across continuous operation cycles. The 1/4-inch BSP air inlet thread ensures straightforward integration with standard compressed air systems commonly found in European and international industrial settings, reducing installation complexity and downtime. The non-reversible vane construction provides smooth, steady rotational output - a characteristic that makes this air motor equally well suited for driving ancillary machinery, conveyors, mixers, and automated assembly line equipment as it is for powering pneumatic die grinder applications requiring precise speed control. As a certified ATEX pneumatic motor, this unit is purpose-built for oil and gas facilities, chemical processing plants, pharmaceutical manufacturing, and other hazardous-area environments where spark-generating electric motors pose unacceptable risks. Maintenance teams and engineers specifying air tools for Zone 1 or Zone 2 classified areas will find this Chicago Pneumatic motor a dependable, standards-compliant choice that balances compact form with genuine industrial-grade capability.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 8.1 l/s
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 1180 rpm
- Minimum starting torque: 12 Nm
- Stall torque: 12.8 Nm
- Torque at max power: 6.4 Nm
- Max output power: 0.4 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 12 mm
- Weight: 1.02 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
