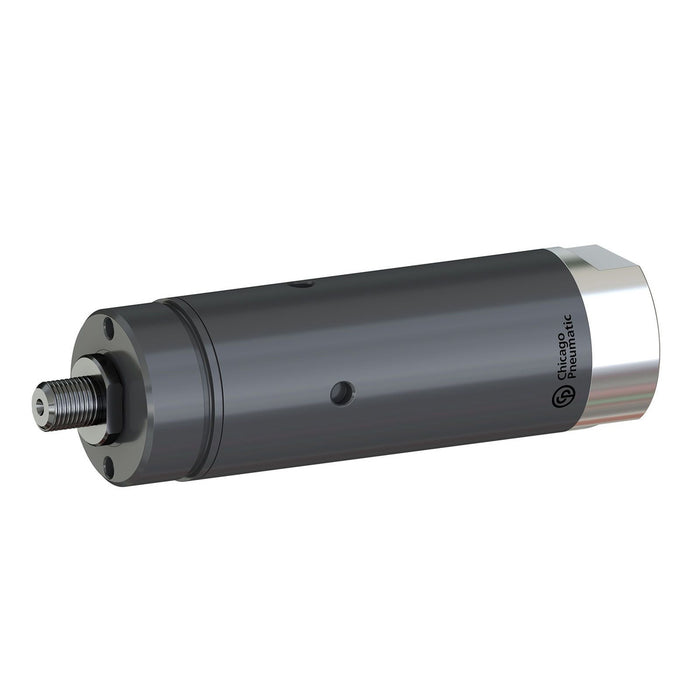

Chicago Pneumatic M2501-3500-TL, Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479974
The Chicago Pneumatic M2501-3500-TL delivers reliable, consistent rotational power for demanding industrial applications where precision and durability are non-negotiable. Engineered as a high-performance non-reversible vane air motor, this compact pneumatic motor produces 250 W of continuous output power at 3500 RPM, making it an ideal choice for OEM integration, custom machine building, and automated production line equipment. Drawing on proven vane motor technology, the M2501-3500-TL operates efficiently at a maximum air consumption of 5.3 l/s, ensuring optimal performance without excessive compressed air waste. The 1/8-inch BSP air inlet thread size allows straightforward connection to standard pneumatic systems, simplifying installation across a wide range of industrial setups. As a purpose-built air motor, it offers the inherent advantages of pneumatic power - smooth speed control, overload protection, and spark-free operation - making it well suited for environments where electrical motors pose safety or compliance concerns. The non-reversible design ensures consistent unidirectional torque delivery, providing stable, repeatable performance for applications such as conveyor drives, mixing equipment, tensioning systems, and light assembly automation. Unlike conventional air powered die grinder configurations, this pneumatic motor is designed specifically for embedded machine use rather than handheld operation, offering engineers a versatile and robust power source. The Chicago Pneumatic M2501-3500-TL is the dependable choice for teams seeking a compact, low-maintenance pneumatic motor solution that performs reliably under continuous industrial duty.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 3500 rpm
- Minimum starting torque: 3.1 Nm
- Stall torque: 0 Nm
- Torque at max power: 1.5 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 3/8-24 UNF
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 0.55 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
