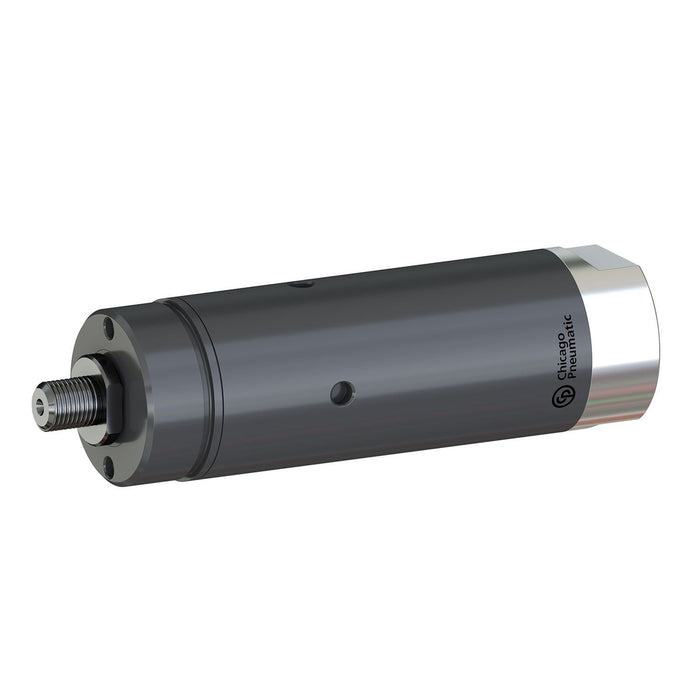

Chicago Pneumatic M2501-2130-TL, Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481744
Delivering consistent rotational force without the complexity of reversibility, the Chicago Pneumatic M2501-2130-TL is a compact, high-performance non-reversible vane air motor engineered for applications where reliable unidirectional power is paramount. Producing 250 W of output power, this pneumatic motor offers an efficient solution for machinery builders, OEM integrators, and maintenance professionals who demand dependable performance from their air-driven systems. The M2501-2130-TL operates at a maximum air flow of 5.9 l/s, matching its air consumption at load, which means engineers can plan compressed air supply requirements with precision and confidence. The 1/8-inch BSP air inlet thread ensures straightforward integration into standard pneumatic circuits commonly found across European and global industrial environments. The vane-driven design provides smooth, consistent torque delivery across the operating range, making it a natural choice where vibration-sensitive or precision-driven processes are involved. As a purpose-built air motor, this unit benefits from the inherent advantages of pneumatic technology - lightweight construction, spark-free operation, and the ability to withstand stall conditions without risk of damage or overheating. These characteristics make it ideally suited for integration into automated production equipment, conveyor drive systems, mixing assemblies, or purpose-built tooling rigs where the controlled, continuous motion of a quality pneumatic motor is essential to achieving repeatable results day after day.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.9 l/s
- Air flow max power: 5.9 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 2130 rpm
- Minimum starting torque: 4 Nm
- Stall torque: 4.2 Nm
- Torque at max power: 2.1 Nm
- Max output power: 0.2 kW
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 5/8-16 UNF
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Threaded shaft
- Starting system: Lever
- Weight: 0.64 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
