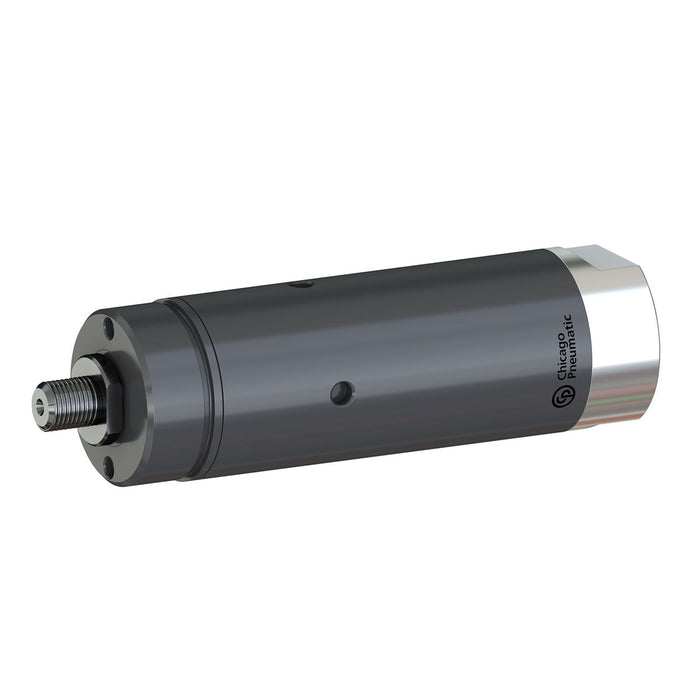

Chicago Pneumatic M2501-1080-TL, Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479984
Delivering consistent rotational power where precision matters most, the Chicago Pneumatic M2501-1080-TL is a non-reversible vane air motor engineered for demanding industrial applications that require reliable, compact performance. Rated at 250 W and operating at 1080 RPM, this pneumatic motor offers a smooth, controlled output that makes it an ideal drive solution for automated machinery, conveyor systems, and custom-built air-powered equipment across manufacturing and production environments. Built with a robust vane-style mechanism, this air motor maintains efficient torque delivery even under sustained load conditions. Air consumption at load registers at 5.3 l/s, matched precisely to the maximum airflow for peak power output, ensuring the unit runs at optimal efficiency without wasting compressed air resources. The 1/8-inch BSP air inlet thread provides straightforward integration into standard pneumatic circuits, reducing installation complexity and downtime when retrofitting or upgrading existing systems. As a trusted name in professional air tools, Chicago Pneumatic has engineered the M2501-1080-TL to meet the expectations of OEM builders and maintenance engineers alike. The non-reversible configuration suits applications where unidirectional rotation is a design requirement, offering a dependable and consistent drive source. Whether powering a production line actuator, driving a mixing mechanism, or forming part of a bespoke pneumatic motor assembly, this unit delivers the performance and reliability that industrial operators depend on day after day.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 1080 rpm
- Minimum starting torque: 10 Nm
- Stall torque: 0 Nm
- Torque at max power: 4.3 Nm
- Max output power: 0.2 kW
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 3/8-24 UNF
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
