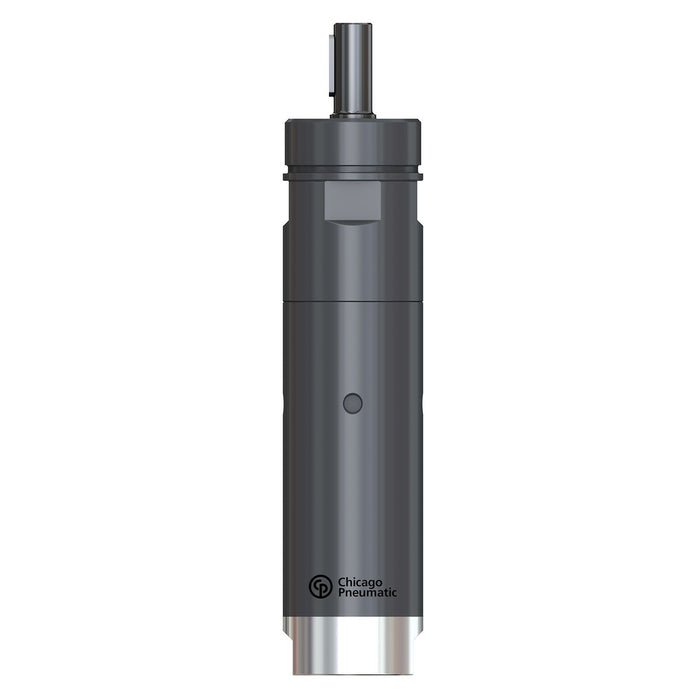

Chicago Pneumatic M25-770-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478274
Delivering reliable, continuous rotational power in hazardous environments, the Chicago Pneumatic M25-770-KL-ATEX non-reversible vane air motor offers industrial operators a robust 250 W output solution engineered specifically for ATEX-rated applications where safety and performance cannot be compromised. This compact yet capable pneumatic motor is built to sustain demanding production schedules, making it a trusted choice for facilities handling flammable atmospheres or explosive dust zones. Constructed around proven vane motor technology, the M25-770-KL-ATEX draws on a straightforward 1/8-inch BSP air inlet to deliver consistent torque, with an air consumption rate of 5.3 l/s at load and a matched maximum airflow of 5.3 l/s at peak power output. These tightly balanced consumption figures ensure the motor operates efficiently across its full working range without placing unnecessary demand on compressed air systems. The BSP threaded inlet allows straightforward integration into standard European pneumatic installations, reducing installation complexity and downtime during commissioning. As an air motor and broader pneumatic motor platform, it pairs effectively with precision drive assemblies and automation equipment where intrinsic safety certification is a regulatory requirement. Engineers specifying pneumatic die grinder spindle drives, conveyor systems, or mixing applications within Zone 1 and Zone 2 classified areas will find the M25-770-KL-ATEX particularly well suited to sustained, unidirectional duty cycles where spark-free operation is non-negotiable.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 770 rpm
- Minimum starting torque: 13.5 Nm
- Stall torque: 14.2 Nm
- Torque at max power: 7.1 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
