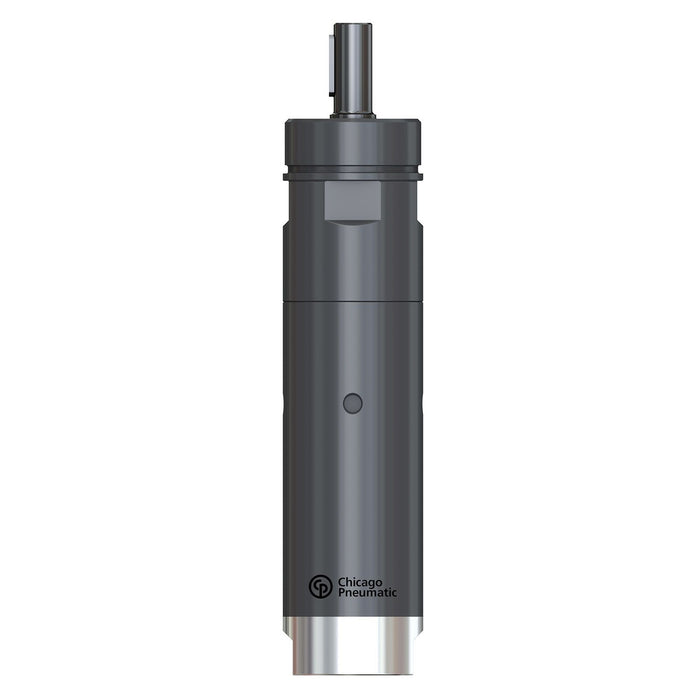

Chicago Pneumatic M25-480-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478284
The Chicago Pneumatic M25-480-KL-ATEX delivers reliable, explosion-safe rotary power in environments where electrical motors simply cannot be used. Engineered as a high-performance non-reversible vane air motor, this 250 W unit is purpose-built for hazardous area classifications, carrying full ATEX certification to meet the most demanding industrial safety standards. Its compact yet robust construction makes it an ideal pneumatic motor for integration into custom-built machinery, conveyor drives, mixing assemblies, and automated production equipment operating in potentially explosive atmospheres. Driven by a consistent air supply, the M25-480-KL-ATEX draws an air consumption of 5.3 l/s at load, with maximum power air flow also rated at 5.3 l/s, ensuring predictable and efficient performance across continuous duty cycles. The 1/8-inch BSP air inlet thread provides straightforward integration with standard pneumatic circuit components, simplifying installation and minimising downtime during commissioning. As a vane-type air motor, it benefits from inherently smooth torque delivery, low maintenance requirements, and the natural overload protection that all quality air tools provide - the motor simply stalls rather than burning out under excessive load. This pneumatic motor is the go-to solution for design engineers and maintenance teams in chemical processing, oil and gas, pharmaceutical manufacturing, and paint finishing facilities where Zone 1 or Zone 2 ATEX compliance is non-negotiable and dependable rotary drive power is essential.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 480 rpm
- Minimum starting torque: 22 Nm
- Stall torque: 23.6 Nm
- Torque at max power: 11.8 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
