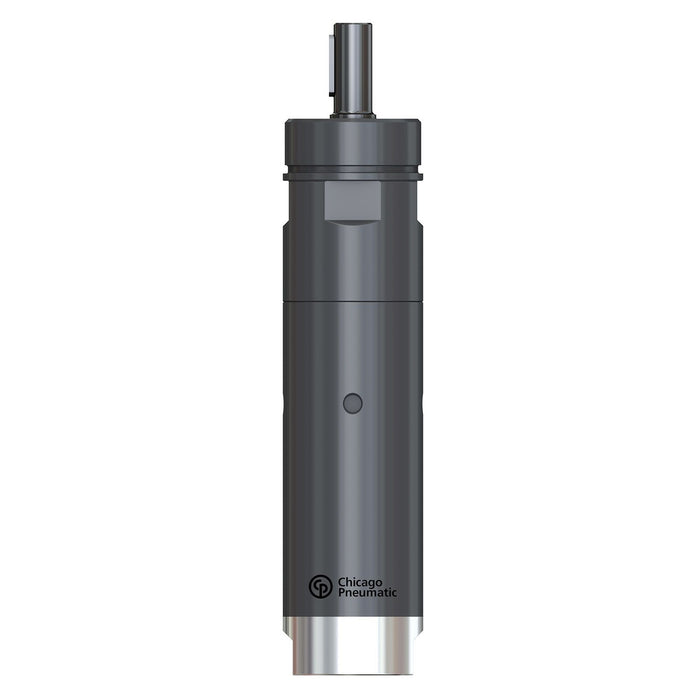

Chicago Pneumatic M25-4700-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478234
Delivering reliable rotary power in hazardous environments where electrical equipment simply cannot be used, the Chicago Pneumatic M25-4700-KL-ATEX non-reversible vane air motor offers 250 W of consistent output for demanding industrial applications. Designed and certified to ATEX standards, this pneumatic motor provides peace of mind on sites where flammable gases, vapours, or dust present a genuine risk, making it an indispensable tool for oil and gas, chemical processing, and other safety-critical industries. Built around proven vane technology, this air motor delivers smooth, efficient power with an air consumption at load of 5.3 l/s and a maximum air flow at peak power of 5.3 l/s, ensuring predictable performance across a full working shift. The compact 1/8-inch BSP air inlet thread allows straightforward integration into existing pneumatic systems without the need for additional adapters or complex installation work. As a robust and dependable pneumatic motor, the Chicago Pneumatic M25-4700-KL-ATEX is engineered to operate continuously in tough conditions, offering the low maintenance and spark-free advantages that make air tools the preferred choice in explosive atmospheres. Whether driving conveyor systems, powering actuators, or running process machinery, this non-reversible vane motor brings precisely controlled rotational force where it is needed most, giving engineers and plant managers a compact, high-performance solution built to the exacting safety demands of modern hazardous-area operations.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 4700 rpm
- Minimum starting torque: 2.3 Nm
- Stall torque: 2.4 Nm
- Torque at max power: 1.2 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.55 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
