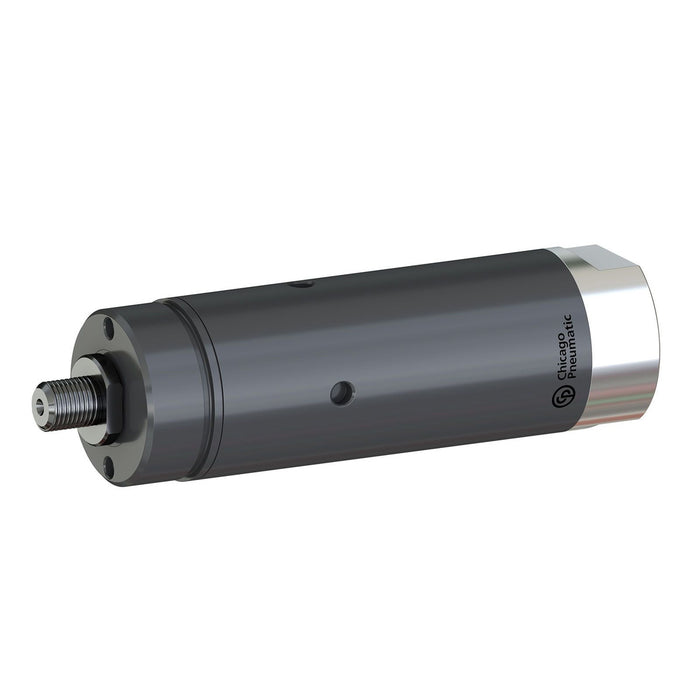

Chicago Pneumatic M25-3550-TL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478314
Delivering consistent rotary power in environments where electrical ignition risks cannot be tolerated, the Chicago Pneumatic M25-3550-TL-ATEX non-reversible vane air motor offers 250 W of reliable output for demanding industrial applications. Engineered to meet ATEX certification standards, this pneumatic motor is purpose-built for use in potentially explosive atmospheres, making it a trusted choice for oil and gas facilities, chemical processing plants, and hazardous manufacturing environments where safety compliance is non-negotiable. The M25-3550-TL-ATEX operates with an air consumption of 5.3 l/s at load, with maximum power air flow also rated at 5.3 l/s, ensuring predictable and efficient performance throughout the working cycle. The compact 1/8-inch BSP air inlet thread allows straightforward integration into existing pneumatic systems without requiring complex adapters or modifications. As a non-reversible vane air motor, this unit provides smooth, unidirectional torque delivery suited to grinding, mixing, and driving applications where directional control is fixed by the application design. The vane-style internals offer excellent power-to-weight characteristics typical of premium air tools, while the sealed ATEX-rated construction adds the layer of protection required in Zone 1 and Zone 2 classified areas. Professionals sourcing a dependable pneumatic motor for continuous-duty operations in hazardous zones will find this Chicago Pneumatic unit ideally suited to conveyor drives, rotary actuators, and light grinding tasks where both performance and explosion-proof certification are essential requirements.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 3550 rpm
- Minimum starting torque: 3.1 Nm
- Stall torque: 3.2 Nm
- Torque at max power: 1.6 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 3/8-24 UNF
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 0.55 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
