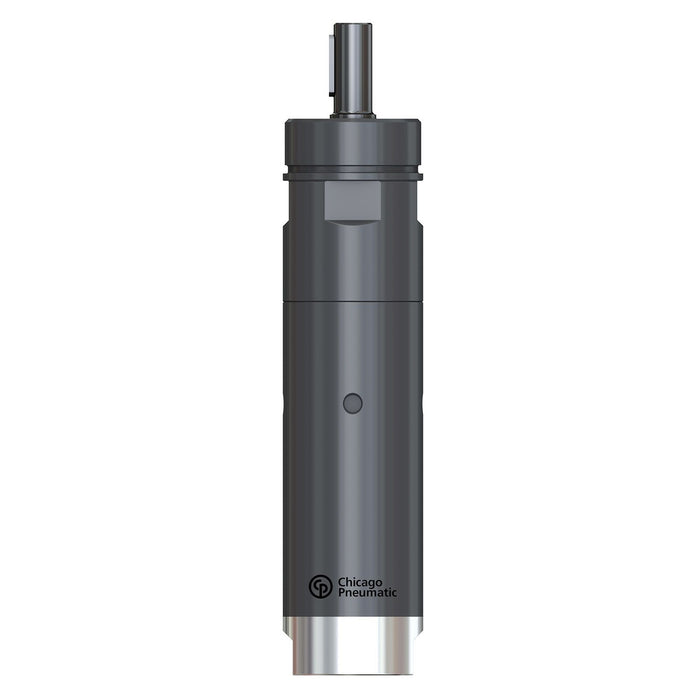

Chicago Pneumatic M25-21500-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478224
Delivering reliable, continuous rotary power in hazardous environments, the Chicago Pneumatic M25-21500-KL-ATEX Non-Reversible Vane Air Motor provides 250 W of consistent output where safety-certified performance is non-negotiable. Built to ATEX standards, this compact pneumatic motor is engineered for use in explosive atmospheres, making it the trusted choice for industries where conventional electric motors simply cannot be deployed. The M25-21500-KL-ATEX operates with an air consumption of 5.3 l/s at load, matching its maximum air flow figure, ensuring predictable and efficient power delivery throughout extended duty cycles. The 1/8 BSP air inlet thread offers straightforward integration with standard pneumatic supply lines, reducing installation complexity and keeping downtime to a minimum. As a non-reversible vane air motor, it provides a consistent rotational direction ideal for applications demanding unidirectional drive. Compared to traditional electric alternatives, this air motor delivers the inherent overload protection and spark-free operation that defines quality pneumatic motor technology, with the robustness Chicago Pneumatic is renowned for across demanding industrial settings. Its compact form factor makes it suitable for embedding within custom machinery, automated tooling assemblies, or purpose-built equipment in chemical processing, oil and gas, and pharmaceutical manufacturing environments. Engineers and OEM designers specifying ATEX-rated air tools for Zone 1 or Zone 2 classified areas will find this motor an outstanding combination of power density, safety compliance, and installation flexibility.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 21500 rpm
- Minimum starting torque: 0.51 Nm
- Stall torque: 0.54 Nm
- Torque at max power: 0.27 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.55 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
