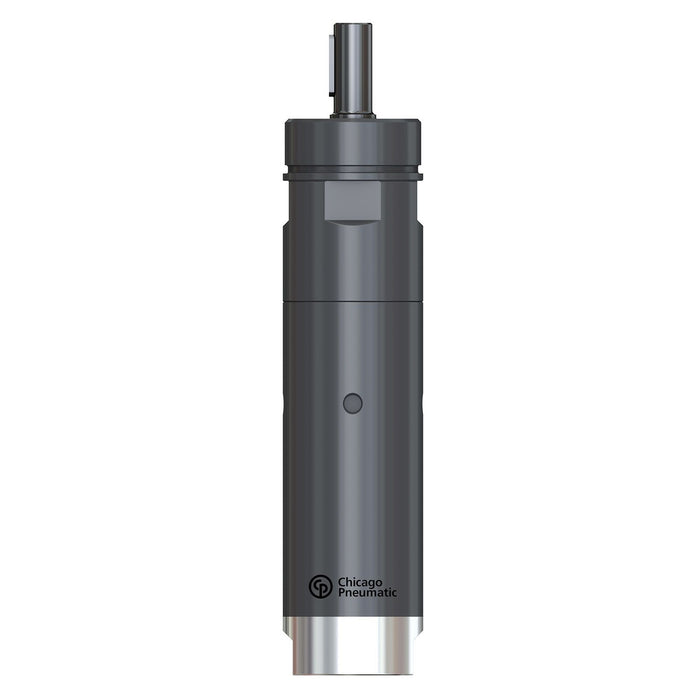

Chicago Pneumatic M25-2100-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478254
Delivering reliable, continuous rotary power in hazardous environments, the Chicago Pneumatic M25-2100-KL-ATEX Non-Reversible Vane Air Motor offers 250 W of consistent output for demanding industrial applications where electrical ignition risks cannot be tolerated. Certified to ATEX standards, this pneumatic motor is engineered for safe operation in explosive atmospheres, making it the go-to choice for oil and gas, chemical processing, and mining facilities that require dependable air-powered performance without compromise. The M25-2100-KL-ATEX operates with an air consumption of 5.3 l/s at load, matched by a maximum power air flow of 5.3 l/s, ensuring efficient energy use throughout extended production runs. The 1/8-inch BSP air inlet thread provides straightforward integration into existing pneumatic systems, minimising installation time and complexity. As a non-reversible vane air motor, it delivers smooth, consistent torque in a single rotational direction, ideal for process machinery, conveyor drives, and automated equipment where directional consistency is essential. Compact and robust, this Chicago Pneumatic air motor brings the inherent advantages of pneumatic power - overload tolerance, spark-free operation, and low maintenance requirements - to environments where electric motors simply cannot be used. Whether driving mixing equipment, agitators, or custom-built air tools within classified hazardous zones, the M25-2100-KL-ATEX provides plant engineers and maintenance teams with a trusted, long-service solution backed by Chicago Pneumatic's global engineering heritage.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 2100 rpm
- Minimum starting torque: 5.1 Nm
- Stall torque: 5.4 Nm
- Torque at max power: 27 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.55 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
