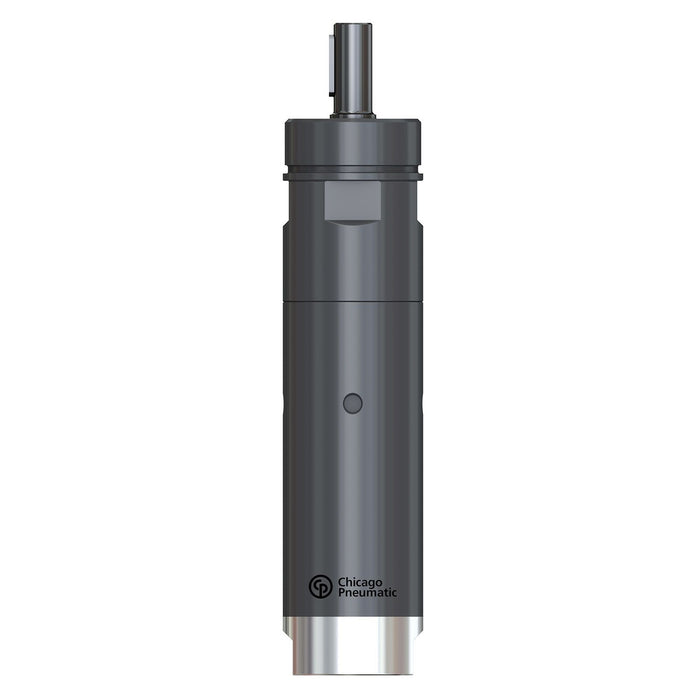

Chicago Pneumatic M25-180-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481724
Delivering reliable, explosion-safe rotary power in demanding industrial environments, the Chicago Pneumatic M25-180-KL-ATEX non-reversible vane air motor offers 250 W of consistent output where safety and performance cannot be compromised. Certified to ATEX standards, this pneumatic motor is purpose-built for use in hazardous locations where flammable gases, vapours, or dust may be present, making it an essential component for industries such as oil and gas, chemical processing, and mining. The M25-180-KL-ATEX features a robust 10 mm output spindle and delivers a torque at maximum power of 9 Nm, ensuring smooth and controlled rotational force for a wide range of driven applications. Weighing just 0.95 kg, this compact air motor is impressively lightweight without sacrificing durability or output capability. Its vane-driven design is well regarded for quiet operation, low maintenance requirements, and excellent speed consistency under varying load conditions - qualities that make vane-type pneumatic motors a preferred choice across precision industrial settings. As a non-reversible unit, it is optimised for single-direction drive tasks, contributing to mechanical simplicity and long service life. Whether integrated into custom automated machinery, conveyor systems, or specialist tooling assemblies, this air-powered drive solution performs reliably in classified Zone 1 and Zone 2 environments. The Chicago Pneumatic M25-180-KL-ATEX is the ideal choice for engineers and procurement teams sourcing a certified, high-performance pneumatic motor for safety-critical applications.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Output Spindle size: 10 mm
- Weight: 0.95 kg
- Minimum starting torque: 0 Nm
- Stall torque: 0 Nm
- Torque at max power: 9 Nm
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Max output power: 0.3 kW
- Certifications, standards & directives: ATEX
- Max free speed range: 180 rpm
- Air consumption at load: 5.8 l/s
- Air flow max power: 5.8 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
-
New Grade - 24 Months Warranty from purchase is available on this product.
