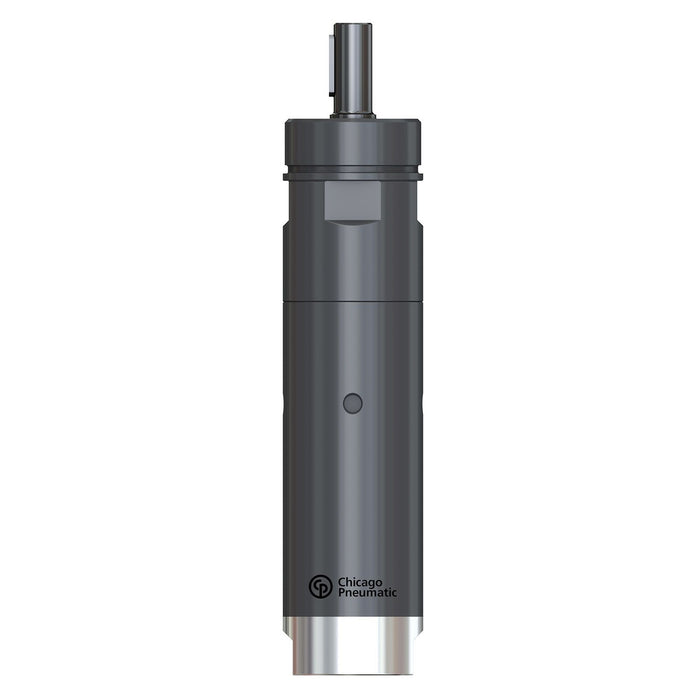

Chicago Pneumatic M25-1040-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478264
Delivering consistent rotational power in hazardous environments where electrical equipment simply cannot be used, the Chicago Pneumatic M25-1040-KL-ATEX non-reversible vane air motor offers industrial operators a reliable and certified solution for demanding applications. Rated at 250 W and classified to ATEX standards, this pneumatic motor is purpose-built for zones where ignition risks make conventional electric drives unsafe, giving maintenance teams and production engineers genuine peace of mind without sacrificing performance. Engineered with precision vane technology, this air motor draws on a maximum air consumption of 5.3 l/s at load, ensuring a steady and efficient power output that remains consistent across extended operational cycles. The compact 1/8-inch BSP air inlet thread allows straightforward integration into existing compressed air systems, reducing installation time and minimising downtime during commissioning. As a non-reversible unit, it delivers unidirectional drive suited to processes requiring controlled, repeatable rotational motion. The M25-1040-KL-ATEX sits firmly within Chicago Pneumatic's trusted range of air tools and pneumatic motor solutions, reflecting the brand's long-standing reputation for durability and engineering quality. Whether deployed as part of automated machinery, integrated into conveyor systems, or used to power bespoke tooling assemblies in oil, gas, chemical, or pharmaceutical facilities, this air motor excels wherever intrinsic safety certification and dependable pneumatic performance must go hand in hand.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 1040 rpm
- Minimum starting torque: 10 Nm
- Stall torque: 10.6 Nm
- Torque at max power: 5.3 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
