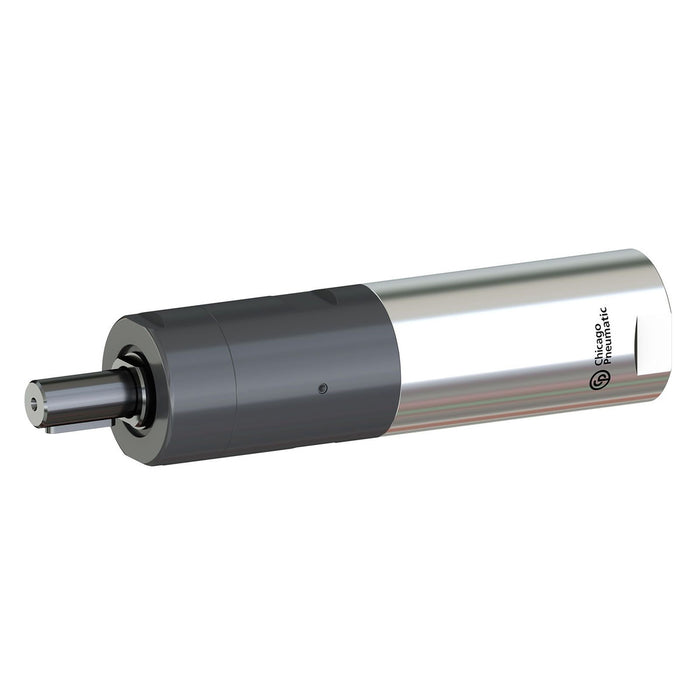

Chicago Pneumatic M180-440-K-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479744
Delivering powerful, reliable performance in hazardous environments, the Chicago Pneumatic M180-440-K-ATEX non-reversible vane air motor is engineered for industrial operations where safety certification is non-negotiable. Rated at an impressive 1800 W, this robust pneumatic motor provides consistent rotational output that keeps demanding production lines moving efficiently and safely. Designed with a 3/8-inch BSP air inlet thread, the M180-440-K-ATEX integrates seamlessly into existing compressed air systems, accepting a maximum air flow of 34 l/s at peak power delivery. The vane-driven mechanism ensures smooth, steady torque output with minimal maintenance requirements, making it a dependable choice for facilities where downtime carries serious consequences. Its ATEX certification marks it as suitable for use in potentially explosive atmospheres, giving operators and safety managers the confidence they need in classified zones. As a high-output pneumatic motor, it brings the efficiency advantages of air-powered technology - no electrical spark risk, lighter weight than comparable electric motors, and the durability that Chicago Pneumatic tools are renowned for worldwide. The non-reversible configuration simplifies installation and control in applications where uni-directional rotation is the standard requirement. This air motor is ideally suited for driving conveyor systems, agitators, pumps, and process machinery in chemical processing plants, oil refineries, offshore platforms, and other Zone 1 or Zone 2 classified industrial environments where pneumatic tools must meet the highest explosion-protection standards.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 34 l/s
- Air flow max power: 34 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 440 rpm
- Minimum starting torque: 113 Nm
- Stall torque: 154 Nm
- Torque at max power: 77 Nm
- Max output power: 1.8 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Clockwise
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 19 mm
- Weight: 2.9 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
