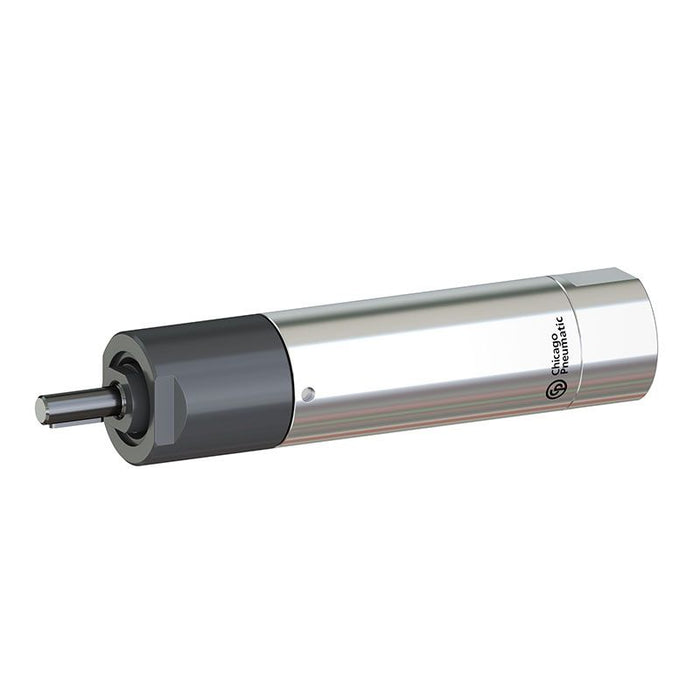

Chicago Pneumatic M16-2900-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478944
Delivering reliable rotational power in the most demanding environments, the Chicago Pneumatic M16-2900-KL-ATEX reversible air motor offers 200 W of output performance at 2900 RPM, making it a precision-engineered solution for industrial applications where safety and durability are non-negotiable. Designed and certified to ATEX standards, this pneumatic motor is purpose-built for use in explosive atmospheres, ensuring compliance without compromising on operational efficiency. Built to withstand the harshest conditions, the M16-2900-KL-ATEX carries an IP66 rating, providing complete protection against dust ingress and powerful water jets - ideal for washdown environments or outdoor industrial settings. The air consumption at load runs at an efficient 4 l/s, matching the maximum air flow at peak power, which means operators benefit from consistent torque delivery throughout the working cycle without excessive compressed air waste. As a reversible air motor, it offers flexible directional control, expanding its versatility across a wide range of machine integration and automation projects. Whether engineers are specifying components for custom pneumatic die grinder assemblies, integrating drive units into automated production lines, or sourcing air motor replacements for existing pneumatic systems, this Chicago Pneumatic unit delivers the dependable, smooth-running performance the brand is known for globally. Its compact form factor and robust construction make it particularly well suited to chemical processing, oil and gas, and pharmaceutical manufacturing environments where ATEX-rated air tools are a strict operational requirement. Product Features: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Index of protection (IP code): IP66
- Air consumption at load: 4 l/s
- Air flow max power: 4 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Max free speed range: 2900 rpm
- Minimum starting torque: 2 Nm
- Stall torque: 2.3 Nm
- Torque at max power: 1.15 Nm
- Max output power: 0.2 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: a
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 6 mm
- Weight: 0.3 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
