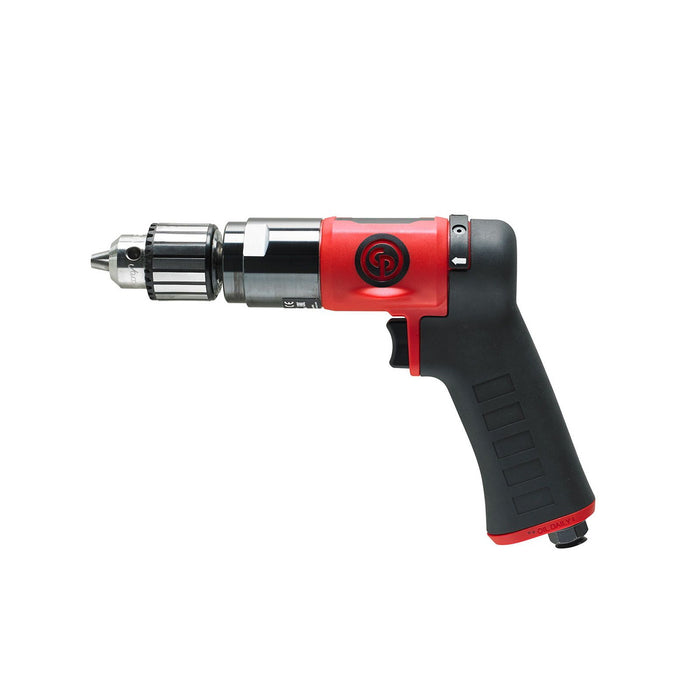

Chicago Pneumatic CP9790C, 3/8" Air Drill
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941097900
The Chicago Pneumatic CP9790C delivers reliable, precision drilling performance for professionals who demand consistent results across a wide range of industrial and maintenance applications. Engineered with a robust aluminium body, this chicago pneumatic air drill strikes an ideal balance between durability and lightweight handling, reducing operator fatigue during extended use. The pistol-grip design provides excellent control and ergonomic comfort, making it a go-to choice for workshop technicians and assembly line operators alike. Rated at 360 W of power output and 5.5 Nm of torque, the CP9790C punches well above its weight class, delivering smooth, controlled drilling through metal, wood, and composite materials with ease. The 3/8 inch (10 mm) keyed chuck ensures a secure, precise bit hold, minimising slippage and maximising drilling accuracy on every pass. As a cp air drill built to Chicago Pneumatic's exacting quality standards, it benefits from the brand's long-standing reputation for engineering tools that withstand demanding daily use. Compatibility with a standard compressed air supply makes this chicago pneumatic air drill straightforward to integrate into existing pneumatic setups without additional investment in specialist infrastructure. Whether it is tackling repetitive fastening tasks on a production floor, performing structural maintenance in a fabrication facility, or supporting general-purpose drilling in a busy workshop environment, the CP9790C is a dependable, high-performance tool engineered to keep operations running efficiently and productively.Product Feature: Composite housing with thermoplastic rubber handle grip and wings on right & left sides for better operator comfort Large teasing trigger and progressive valve allowing more control to start holes Handle exhaust allowing the air to flow away from the operator Flat back part for better pushing action while drilling and tapping About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 3/8
- Chuck max capacity (mm): 10
- Chuck type: Keyed
- Handle type: Pistol
- Main Material type: Aluminium, Composite over-sleeve
- Reversible: Yes
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 98.5 dB(A)
- Sound Pressure: 87.1 dB(A)
- Air consumption at load: 0 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 360 W
- Stall torque: 5.5 Nm
- Free Speed: 2100 rpm
- Air consumption at free speed: 13 l/s
- Height (H): 150 mm
- Length (L): 235 mm
- Side to Center: 49 mm
- Weight: 1.1 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
