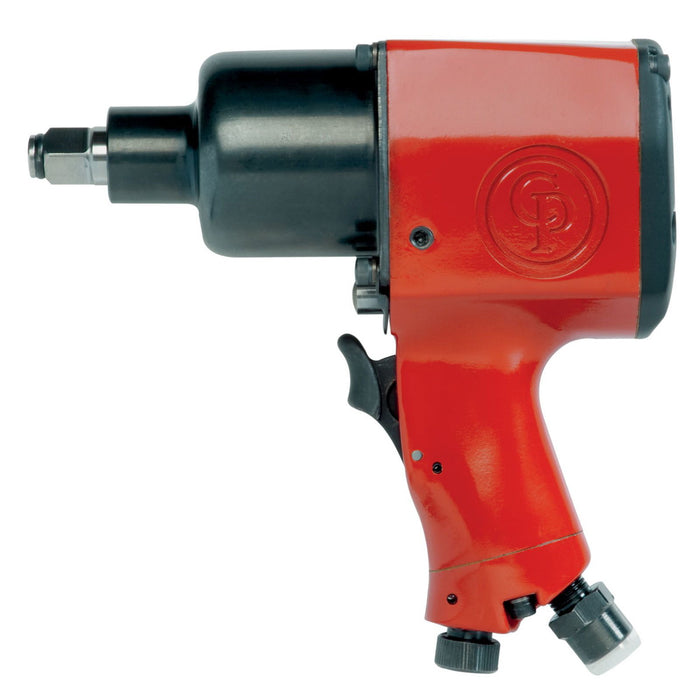

Chicago Pneumatic CP9561, 3/4" Pistol Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151909561
The Chicago Pneumatic CP9561 delivers the raw power and precision that professional mechanics and industrial technicians demand from a heavy-duty 3/4'' drive air impact wrench. Engineered for high-torque fastening applications, this chicago pneumatic impact wrench generates an impressive 950 Nm of maximum working torque in forward and a formidable 1250 Nm in reverse, making stubborn fastener removal effortless even in the most demanding workshop environments. Built around a robust twin-hammer mechanism, the CP9561 operates at a free speed of 5500 RPM, delivering rapid bolt driving and removal without sacrificing control. The adjustable forward torque range - starting from a minimum of 200 Nm - gives operators genuine versatility across light assembly tasks and heavy-duty dismantling work alike. As a trusted cp impact wrench option, this model balances a competitive power-to-weight ratio with ergonomic handling that reduces operator fatigue during extended use. The 3/4'' square drive is ideally suited to larger fasteners found on commercial vehicles, heavy plant machinery, construction equipment, and industrial production lines. Paired with a standard air inlet connection, the CP9561 integrates seamlessly into existing compressed air systems, requiring no specialist setup. For workshops, fleet maintenance operations, and plant engineers who need a dependable air impact wrench capable of handling the toughest bolted joints day after day, the Chicago Pneumatic CP9561 represents a compelling, professional-grade solution available through MachineRefurb.com.Product Feature: DYNA-PACT - Pin clutch with oil bath for high reliability Durable aluminium body and robust steel clutch housing for extreme durability. Power control through a multi-position regulator at handle level About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 950 Nm
- Max torque reverse: 1250 Nm
- Min working torque fwd: 200 Nm
- Torque limited: No
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 13 mm
- Sound Pressure: 100 dB(A)
- Uncertainty vibration-K: 2.4 m/s²
- Free Speed: 5500 rpm
- Length (L): 216 mm
- Power weight ratio: 240 Nm/kg
- Side to Center: 39 mm
- Weight: 5.1 kg
- Blow per minute: 900
- Body: Aluminium
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mechanism: Pin clutch
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Hole
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
