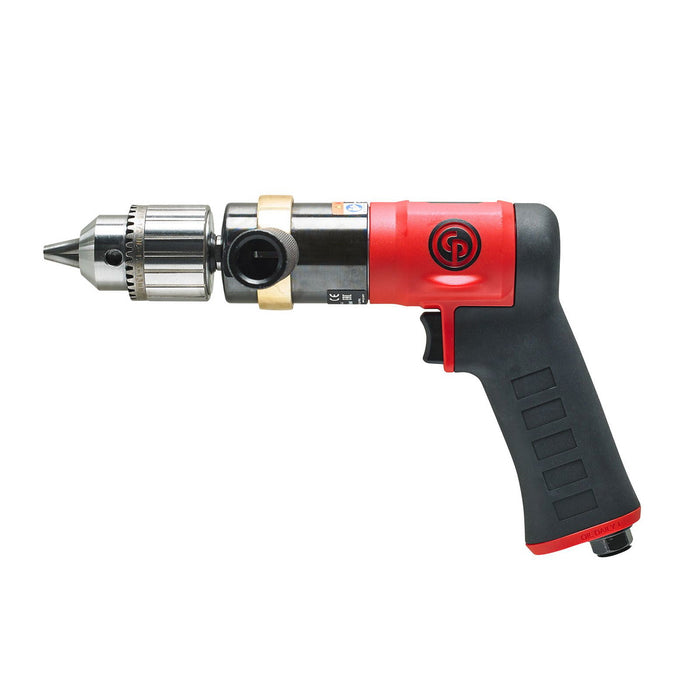

Chicago Pneumatic CP9286C, 1/2" Air Drill
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941092860
The Chicago Pneumatic CP9286C delivers the reliability and precision that professional tradespeople demand from a heavy-duty half-inch air drill. Engineered with a robust 360 W power output and 22 Nm of torque, this cp air drill handles everything from structural steel to hardwood with consistent, repeatable performance on demanding job sites. The lightweight aluminium construction keeps operator fatigue to a minimum during extended use, making it an ideal partner for high-volume drilling tasks where comfort and endurance matter equally. Fitted with a 13 mm keyed chuck, the CP9286C provides a secure, slip-free grip on drill bits across the full capacity range, ensuring precise hole placement every time. The pistol handle design promotes a natural, controlled grip that translates directly into straighter, more accurate drilling - a detail professionals notice immediately when working overhead or in restricted spaces. As a chicago pneumatic air drill, it draws on decades of pneumatic engineering heritage, delivering the kind of dependable torque curve that keeps work moving without interruption. The cp 1 2 air drill configuration makes it equally suited to mechanical workshops, construction sites, shipyards, and fabrication facilities where productivity cannot be compromised. Whether drilling mounting holes in steel framework, fitting structural fixings, or driving large-diameter bits through timber, the Chicago Pneumatic CP9286C is the air drill professionals reach for when the job demands power, accuracy, and all-day durability in one proven package.Product Feature: Composite housing with thermoplastic rubber handle grip and wings on right & left sides for better operator comfort Large teasing trigger and progressive valve allowing more control to start holes Handle exhaust allowing the air to flow away from the operator Flat back part for better pushing action while drilling and tapping About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 1/2
- Chuck max capacity (mm): 13
- Chuck type: Keyed
- Handle type: Pistol
- Main Material type: Aluminium, Composite over-sleeve
- Reversible: No
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 95.2 dB(A)
- Sound Pressure: 84.2 dB(A)
- Air consumption at load: 11 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 360 W
- Stall torque: 22 Nm
- Free Speed: 600 rpm
- Air consumption at free speed: 13 l/s
- Height (H): 150 mm
- Length (L): 250 mm
- Side to Center: 51 mm
- Weight: 1.49 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
