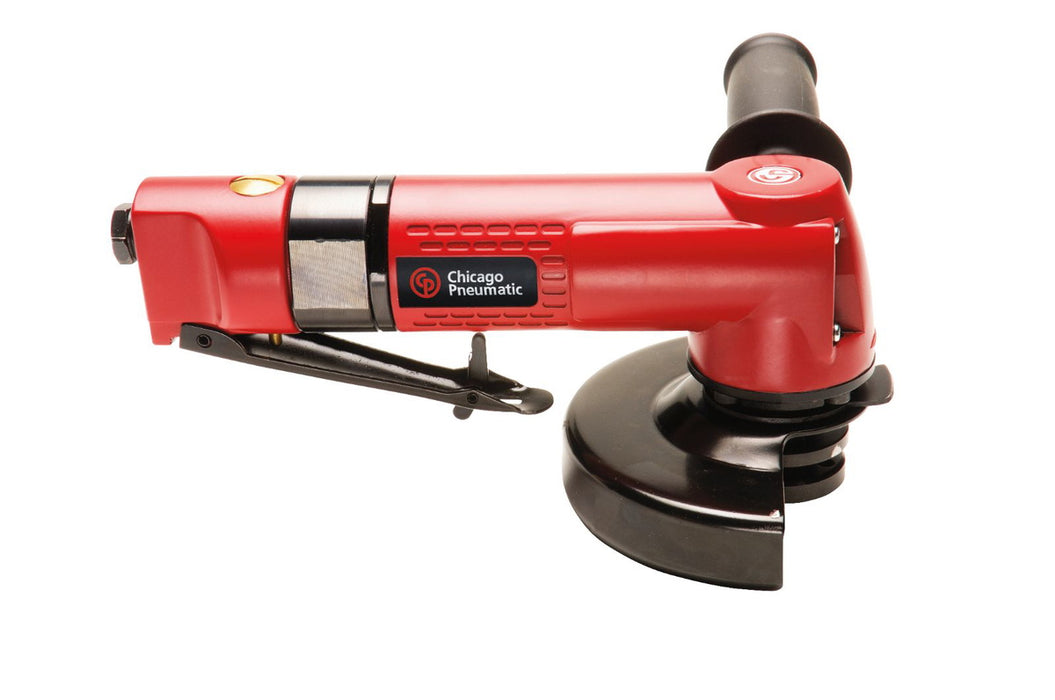

Chicago Pneumatic CP9121CR, 5" Air Angle Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151952121
The Chicago Pneumatic CP9121CR delivers the precision and power that fabricators and maintenance professionals demand from a compact 5-inch pneumatic angle grinder. Engineered to tackle demanding grinding, cutting, and surface preparation tasks, this chicago pneumatic air grinder combines a robust 600 W output with a free speed of 12,000 RPM, ensuring consistent material removal across metal, stone, and composite surfaces. The 125 mm disc capacity makes it ideally suited for tight access areas where larger tools simply cannot reach, giving operators the versatility to move between coarse grinding and fine finishing without changing machines. Air consumption at free speed measures 9.9 l/s, reflecting an efficient design that extracts maximum performance from standard workshop compressor setups. The 180-degree guard rotation provides meaningful flexibility when positioning around workpieces, allowing the operator to optimise disc angle without compromising safety. As a cp die grinder-class tool built to chicago pneumatic grinder standards, the CP9121CR benefits from the brand's reputation for durability in high-cycle industrial environments, where reliability over thousands of operating hours is non-negotiable. The ergonomic housing reduces operator fatigue during extended use, making this chicago pneumatic air grinder an excellent choice for automotive bodywork, structural steel preparation, weld seam blending, and general fabrication shops where a dependable 5-inch air angle grinder is a daily workhorse.Product Feature: Helical bevel gear design & aluminium alloy housing for high durability Keyless adjustable protective guard for better security Ergonomic side handle About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 12000 rpm
- Air consumption at free speed: 9.9 l/s
- Auto balancer: No
- Guard max rotation: 180 °
- Guard positions: 9
- Main Material type: Aluminium
- Output Spindle Thread: 3/8-24 UNF
- Rotative guard type: Lock
- Spindle lock: No
- Starting system: Safety lever
- Swiveling guard: Keyless
- Wheel/Disc diameter (in): 5
- Wheel/Disc diameter (mm): 125
- Sound Power: 95 dB(A)
- Sound Pressure: 84 dB(A)
- Uncertainty vibration-K: 3.4 m/s²
- Vibration: 11.2 m/s²
- Air consumption at load: 12 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Length (L): 240 mm
- Weight: 2.1 kg
- Max power: 600 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
