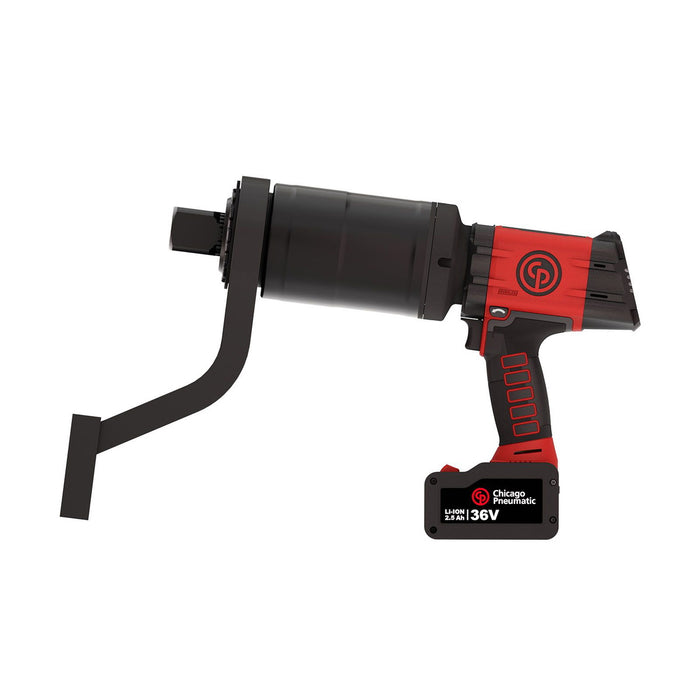

Chicago Pneumatic CP8681C, 36V 1-1/2" Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570190
Delivering exceptional torque performance without the constraints of a compressor or hose, the Chicago Pneumatic CP8681C PACK offers professional-grade versatility for demanding fastening applications. This 36V 2.5Ah battery-powered 1-1/2'' drive torque wrench connected solution gives tradespeople and heavy-duty technicians the freedom to work anywhere on site, combining the raw power typically associated with a pneumatic impact wrench with the convenience of cordless operation. Engineered for operator comfort during extended use, the CP8681C features impressively low vibration levels of under 2.5 m/s², significantly reducing fatigue across long working shifts. Sound power measures 64 dB(A) with sound pressure at 83 dB(A), making it considerably quieter than a traditional air impact wrench in enclosed workshop environments. The tool's robust design supports maximum ambient storage temperatures of up to 60°C, ensuring reliable performance and battery integrity across varied job site conditions. The ''Connected'' functionality sets this chicago pneumatic impact wrench apart from conventional alternatives, enabling smart torque monitoring and data tracking for quality-controlled fastening processes. Compatible with the wider Chicago Pneumatic battery ecosystem, the included 36V 2.5Ah pack delivers sustained power output throughout demanding cycles. Whether tightening large structural bolts, working on heavy plant machinery, or tackling truck wheel assemblies where a high-capacity cp impact wrench is essential, this 1-1/2'' drive unit provides the precision, reliability, and intelligence that modern industrial professionals require.Product Feature: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power: 64 dB(A)
- Sound Pressure: 83 dB(A)
- Vibration (m/s²): <2.5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 1 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 414 mm
- Width (W): 106 mm
- A: 51 mm
- B: 102 mm
- C: 203 mm
- D: 245 mm
- E: 89 mm
- F: 56 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 65 mm
- Power weight ratio: 710 Nm/kg
- Weight: 11.4 kg
- Weight without reaction arm: 11.4 kg
- Weight with reaction arm: 15.7 kg
- Max torque in forward: 8100 Nm
- Max torque reverse: 8100 Nm
- Min torque in forward: 2000 Nm
- Recommended Torque: 6480 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1-1/2
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type included
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
