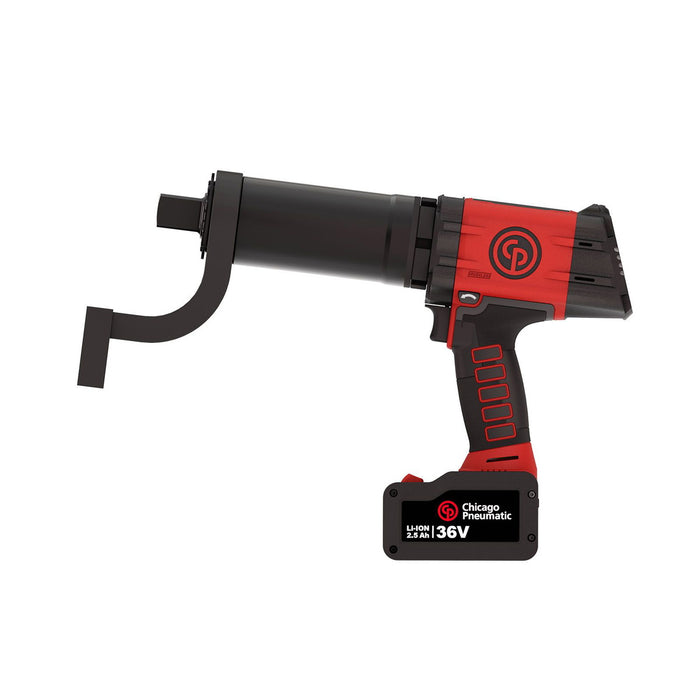

Chicago Pneumatic CP8626, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570030
Delivering exceptional cordless performance without compromising on power, the Chicago Pneumatic CP8626 PACK redefines what professionals expect from a battery-driven torque solution. This 36V 1-inch drive impact wrench produces an impressive 520 Nm of maximum torque, making it a genuine alternative to traditional pneumatic impact wrench setups in demanding workshop and field environments. Powered by a 2.5Ah lithium-ion battery, the CP8626 PACK offers the freedom of cordless operation while maintaining the kind of output typically associated with a high-performance 1 air impact gun. The tool delivers consistent power for heavy-duty fastening and removal tasks, whether technicians are working on large commercial vehicles, agricultural machinery, or industrial equipment where reliability is non-negotiable. Operator comfort has been carefully considered throughout the design. Sound power levels are rated at just 71 dB(A), and vibration is kept below 2.5 m/s², meaning extended use remains manageable and within recommended exposure guidelines. For teams transitioning away from traditional air impact wrench or pneumatic impact wrench setups, this battery torque wrench significantly reduces the need for compressor infrastructure while still delivering professional-grade results. The Chicago Pneumatic cp impact wrench format also means greater portability across job sites, making this solution ideal for mobile technicians, fleet maintenance professionals, and heavy equipment workshops requiring a versatile, high-torque cordless 1-inch drive tool as their go-to fastening solution.Product Feature: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <72
- Sound Power: 71 dB(A)
- Sound Pressure: 83 dB(A)
- Vibration (m/s²): <2,5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 5 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 363 mm
- Width (W): 77 mm
- A: 36 mm
- B: 67 mm
- C: 168 mm
- D: 194 mm
- E: 89 mm
- F: 40 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 45 mm
- Power weight ratio: 520 Nm/kg
- Weight: 5 kg
- Weight without reaction arm: 5 kg
- Weight with reaction arm: 6.4 kg
- Max torque in forward: 2600 Nm
- Max torque reverse: 2600 Nm
- Min torque in forward: 700 Nm
- Recommended Torque: 2080 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type included
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
