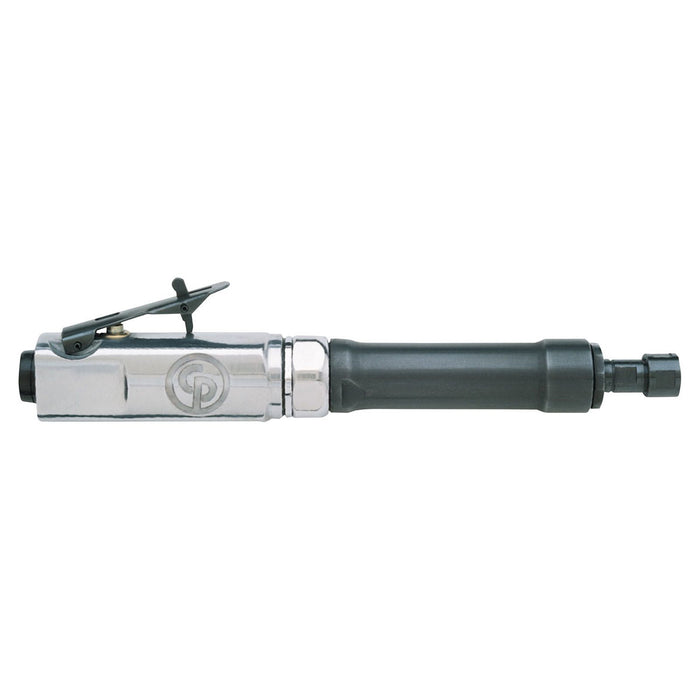

Chicago Pneumatic CP860ES, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T023193
The Chicago Pneumatic CP860ES delivers professional-grade performance in a compact, ergonomically refined package that serious metalworkers and fabricators will immediately appreciate. This 1/4-inch air die grinder generates an impressive 400 W of maximum power at 24,000 RPM free speed, giving operators the cutting force needed to tackle demanding grinding, deburring, porting, and surface finishing tasks with consistent, reliable results. As a precision-engineered pneumatic die grinder, the CP860ES strikes an exceptional balance between raw capability and operator comfort, weighing just 0.95 kg across its 294 mm body length - reducing fatigue during extended use without sacrificing control or output. Built to perform efficiently within compressed air systems, this CP die grinder draws 10 l/s air consumption at free speed, making it compatible with a broad range of shop compressor setups. The 6 mm collet size accepts standard die grinder bits, carbide burrs, and mounted points, giving technicians the versatility to move between material types and applications without changing tools. Whether working in automotive bodywork, aerospace component finishing, weld blending, or precision tool and die work, this air die grinder earns its place as a dependable daily driver in any professional workshop or production environment. Operators searching for a high-speed pencil die grinder that delivers genuine Chicago Pneumatic durability and performance will find the CP860ES ready to meet the challenge on every job.Product Feature: Rugged and energy efficient 0.54 hp (400 W) motor for better productivity Adjustable speed regulator & lock-off throttle Square handle design for greater comfort About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 294 mm
- Weight: 0.95 kg
- Max power: 400 W
- Free Speed: 24000 rpm
- Air consumption at free speed: 10 l/s
- Air consumption at load: 10 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 103.6 dB(A)
- Sound Pressure: 92.6 dB(A)
- Uncertainty vibration-K: 1.5 m/s²
- Vibration: 3.7 m/s²
- Angle Type: Straight
- Exhaust: Rear
- Governor type: NA
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
