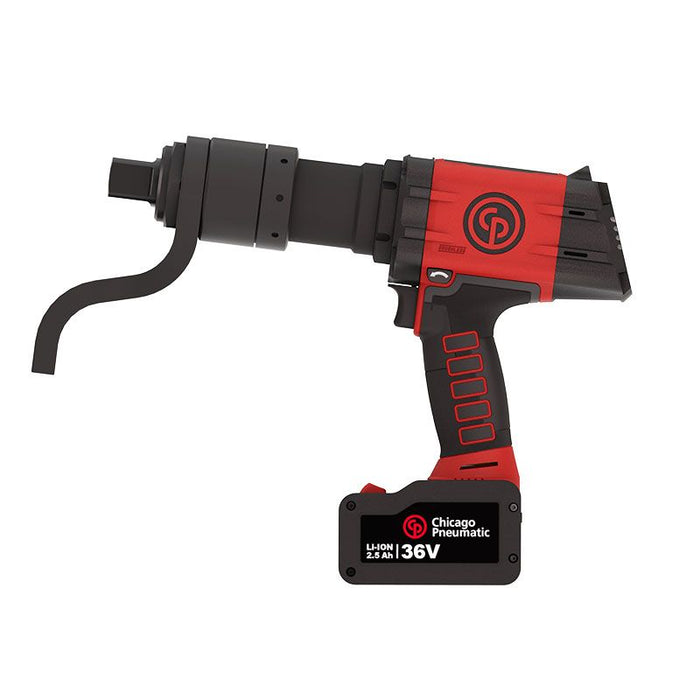

Chicago Pneumatic CP8609CQ, 1" Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151571150
The Chicago Pneumatic CP8609CQ PACK delivers professional-grade torque control in a cordless 36V platform, making it an outstanding choice for workshops and fleet maintenance operations that demand precision and portability without compromise. Powered by a 2.5Ah battery, this 1-inch drive commercial torque wrench combines serious fastening capability with the freedom of a cable-free working environment, eliminating the need for compressed air lines across busy service bays. Engineered with operator comfort firmly in mind, the CP8609CQ achieves a remarkably low sound pressure level of just 58 dB(A) and sound power of 69 dB(A), keeping noise exposure well within the sub-83 dB(A) threshold that protects technicians during extended shifts. Vibration output is equally controlled, with an uncertainty value of just 0.5 m/s², reducing fatigue across long working days. The integrated Torque Check function allows users to verify applied torque on the spot, providing an added layer of quality assurance that is invaluable in safety-critical fastening applications. This truck torque wrench is ideally suited for heavy vehicle servicing, where accurate wheel-end torque is non-negotiable. From HGV and lorry torque wrench applications to bus fleet maintenance and agricultural machinery, the Chicago Pneumatic CP8609CQ PACK handles demanding 1-inch drive fastening tasks with confidence, consistency, and the low-noise performance that modern workshop environments require. Product Features: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app Features- CPLinQ app for better control (only on C, CQ and TC versions) and traceability of your process (only on CQ and TC versions). Angle tightening (only on C, CQ and TC versions) Counting sequence to avoid missed tightenings (only on CQ and TC versions) Torque Check to control bolt loosening over time (only on TC version) Automatic reaction arm release to avoid tool to stay blocked on the application About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <83
- Sound Power: 69 dB(A)
- Sound Pressure: 58 dB(A)
- Uncertainty vibration-K: 0.5 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.4 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 341 mm
- Width (W): 77 mm
- A: 33 mm
- B: 67 mm
- C: 153 mm
- D: 171 mm
- E: 89 mm
- F: 32 mm
- I: 117 mm
- J: 67 mm
- K: 76 mm
- M: 34 mm
- Power weight ratio: 180 Nm/kg
- Side to Center: 33.5 mm
- Weight: 4.2 kg
- Weight without reaction arm: 4.2 kg
- Weight with reaction arm: 4.86 kg
- Free Speed: 15 rpm
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 250 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
