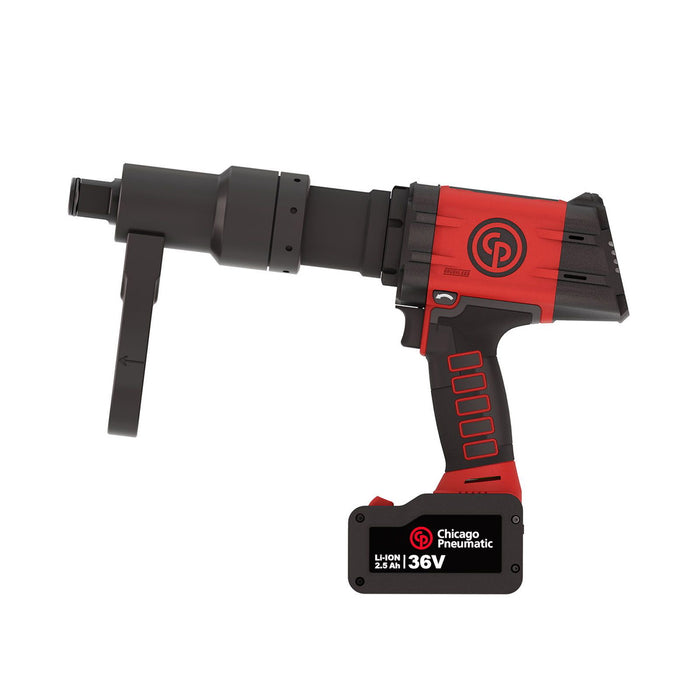

Chicago Pneumatic CP8609CQ-CT, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570580
The Chicago Pneumatic CP8609CQ-CT PACK delivers professional-grade cordless torque control in a connected 36V platform, giving workshop technicians and heavy-duty maintenance crews a smarter, more precise way to manage fastening applications. Powered by a 36V 2.5Ah battery, this 1'' drive battery torque wrench combines the raw capability expected from a cp impact wrench with intelligent connectivity features that enable real-time torque monitoring and data logging - a significant step forward for quality-conscious operations. Engineered with operator comfort firmly in mind, the CP8609CQ-CT achieves a sound power level of just 73 dB(A) and a sound pressure rating of 62 dB(A), keeping noise exposure well below the 83 dB(A) threshold. Vibration uncertainty is rated at just 0.6 m/s², reducing fatigue during extended use and supporting compliance with workplace health and safety standards. Compared to a conventional pneumatic impact wrench or air impact gun, the cordless design eliminates hose management entirely, allowing greater freedom of movement across the workshop floor or on site. The connected functionality sets this tool apart from standard chicago pneumatic impact wrench models, enabling integration with digital torque management systems for traceable assembly processes. Whether tackling heavy truck maintenance, agricultural equipment, or large-scale industrial assembly, the CP8609CQ-CT PACK is built to deliver consistent, verifiable results where precision and uptime both matter.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 380 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 191 mm
- D: 211 mm
- E: 89 mm
- F: 33 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 160 Nm/kg
- Side to Center: 33.5 mm
- Weight: 5.6 kg
- Weight without reaction arm: 5.6 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Sliding drive
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
