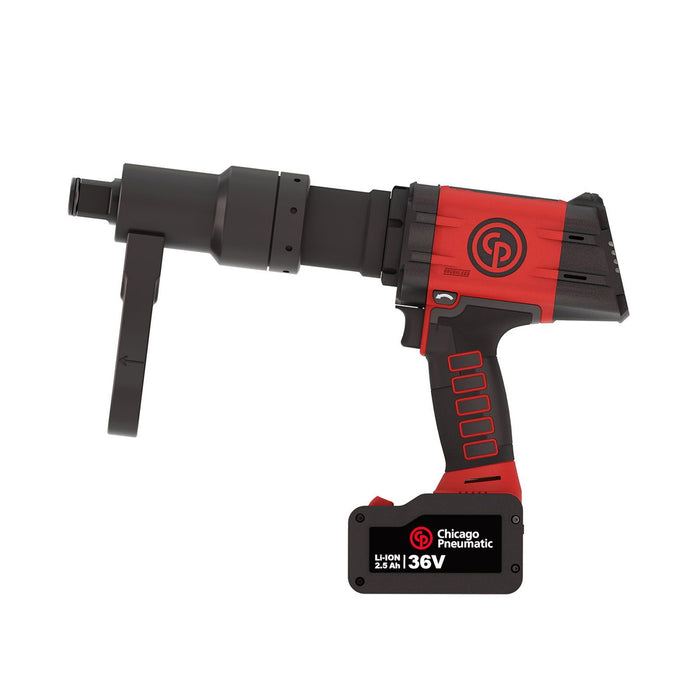

Chicago Pneumatic CP8609CQ-C, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570750
The Chicago Pneumatic CP8609CQ-C delivers professional-grade 1-inch drive battery torque wrench performance that redefines precision fastening on demanding job sites. Engineered for heavy-duty applications, this 36V 2.5Ah connected impact wrench combines intelligent torque management with whisper-quiet operation, producing a sound pressure level of just 62 dB(A) and sound power of 73 dB(A) - well below the 83 dB(A) threshold - making it one of the quietest cp impact wrenches in its class. Unlike a conventional pneumatic impact wrench, the CP8609CQ-C eliminates the need for compressors and hoses without sacrificing the raw power professionals expect from a 1 air impact gun. The Connected technology allows users to monitor, adjust, and programme torque settings wirelessly, delivering repeatable accuracy across every fastening cycle. Vibration levels are held to an impressively low 0.6 m/s² uncertainty rating, significantly reducing operator fatigue during extended use - a critical advantage over a standard chicago pneumatic impact wrench when working through long production shifts or complex assembly tasks. The robust 1-inch square drive provides exceptional torque output suited to truck and bus maintenance, heavy equipment servicing, construction steelwork, and industrial assembly lines where consistent clamping force is non-negotiable. Whether tightening large structural bolts, servicing agricultural machinery, or tackling fleet maintenance, this intelligent battery-powered impact wrench gives engineers and technicians the confidence of precise, connected torque control in a single, cordless package.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 380 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 191 mm
- D: 211 mm
- E: 89 mm
- F: 33 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 160 Nm/kg
- Side to Center: 33.5 mm
- Weight: 5.6 kg
- Weight without reaction arm: 5.6 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Sliding drive
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
