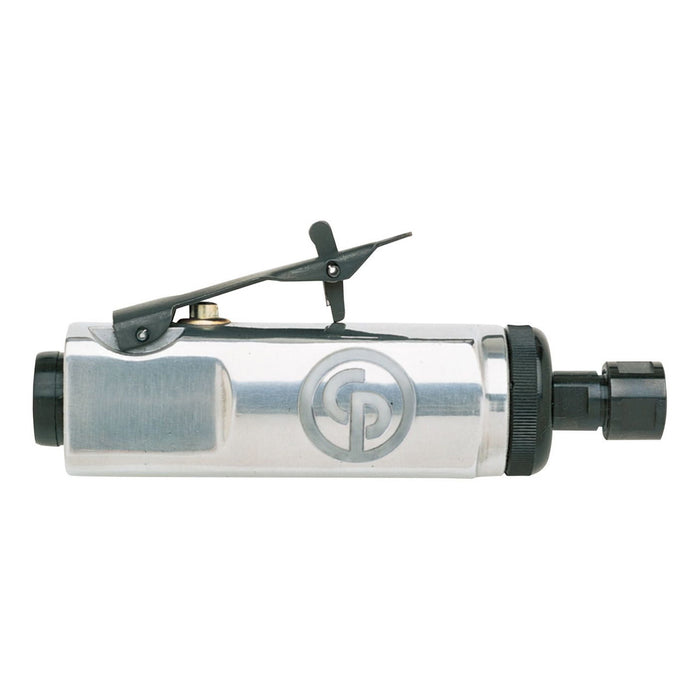

Chicago Pneumatic CP860, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T019704
The Chicago Pneumatic CP860 is a precision-engineered 1/4'' air die grinder built for professionals who demand consistent performance in tight spaces and demanding applications. Delivering 400 W of maximum power at an impressive 24,000 RPM free speed, this compact pneumatic die grinder gives operators the rotational force needed to tackle grinding, deburring, porting, and surface finishing with confidence and control. Weighing just 0.57 kg and measuring only 146 mm in length, the CP860 chicago pneumatic die grinder is one of the most ergonomically balanced tools in its class. Its slim, pencil-style body makes it an ideal air pencil grinder for accessing recessed welds, intricate castings, and confined engine components where larger tools simply cannot reach. The lightweight design reduces operator fatigue during extended use, making it a trusted choice across automotive workshops, fabrication shops, and aerospace maintenance facilities. With an air consumption of 9.9 l/s at free speed, the CP860 is engineered for efficient operation without overtaxing workshop compressor systems. Its 6 mm collet accepts a wide range of standard die grinder accessories, offering genuine versatility across multiple finishing tasks. The robust internal components are built to Chicago Pneumatic's exacting standards, ensuring durability and long service life even in high-cycle production environments. This cp die grinder is the go-to solution for technicians requiring a reliable, high-speed tool for precision material removal, weld blending, and detailed surface preparation work.Product Feature: Rugged and energy efficient 0.54 hp (400 W) motor for better productivity Adjustable speed regulator & lock-off throttle Square handle design for greater comfort About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 146 mm
- Weight: 0.57 kg
- Max power: 400 W
- Free Speed: 24000 rpm
- Air consumption at free speed: 9.9 l/s
- Air consumption at load: 9.9 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 103.5 dB(A)
- Sound Pressure: 92.5 dB(A)
- Uncertainty vibration-K: 1.6 m/s²
- Vibration: 3.7 m/s²
- Angle Type: Straight
- Collet max capacity: 1/4 (6.4mm)
- Exhaust: Rear
- Governor type: NA
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
