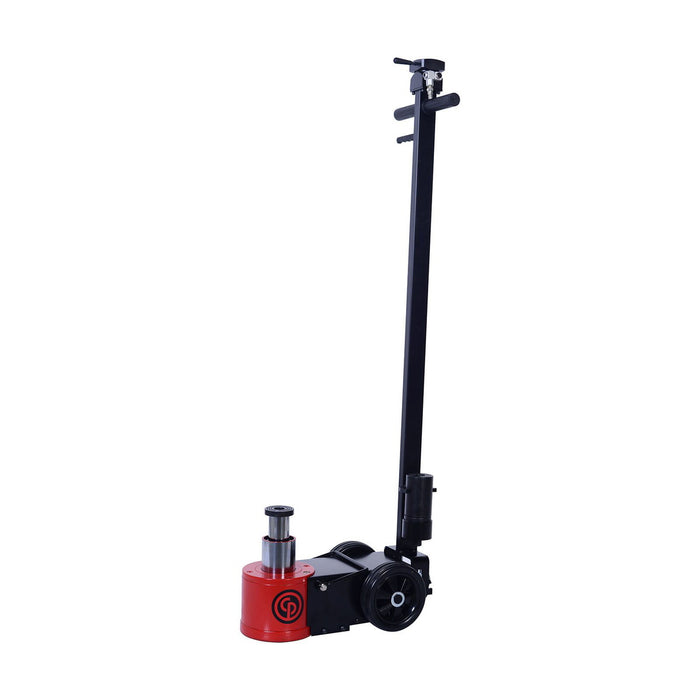

Chicago Pneumatic CP85030, 30 Tonne Air Hydraulic Jack
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941085030
The Chicago Pneumatic CP85030 30-ton air hydraulic jack delivers exceptional lifting power for demanding workshop and industrial environments where speed and reliability are non-negotiable. Engineered to handle the heaviest loads with precision, this air powered jack transforms compressed air into controlled hydraulic force, dramatically reducing operator fatigue and improving turnaround times on busy shop floors. Operating within a working pressure range of 8 to 12 bar, the CP85030 provides consistent, responsive performance across a wide variety of lifting applications. The pneumatic jack reaches a maximum height of 409 mm when the extension is fitted, with an extension stroke of 75.45 mm that gives technicians the additional reach needed for larger vehicles or elevated workpieces. This generous lift range makes it particularly well suited to truck servicing, heavy equipment maintenance, and commercial vehicle workshops where clearance requirements vary considerably. Built to Chicago Pneumatic's exacting standards, this air jack combines robust construction with the efficiency of air-driven operation, eliminating the physical effort associated with traditional manual jacks. The integrated air jack pump mechanism ensures smooth, controlled raising and lowering, giving operators confidence when working beneath substantial loads. Compatible with a standard workshop airline, setup is straightforward and downtime is minimised. The Chicago Pneumatic CP85030 is the ideal choice for fleet maintenance facilities, tyre and exhaust centres, and heavy-duty vehicle workshops that demand a dependable, high-capacity pneumatic jack capable of earning its keep day after day.Product Feature: Air powered piston for fast, high lift capacity on high-axle vehicles Hard chromium plated piston guarantees durability and resistance to corrosion Low profile construction allows easy access to lift low chassis trucks and buses Long handlebar allows easy access and control when fully positioned under vehicle. Handlebar locks in 3 positions: 45°, 90°, and 180° for easy manoeuvring. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working pressure: 12 bar
- Min working pressure: 8 bar
- Extension height (mm): 75,45
- Max height with extension: 409 mm
- Min height: 150 mm
- Lifting capacities (tonne): 15,30
- Main Material type: Steel
- Max Lifting Capacity: 30 ton(s)
- Wheel type: Rubber
-
New Grade - 24 Months Warranty from purchase is available on this product.
