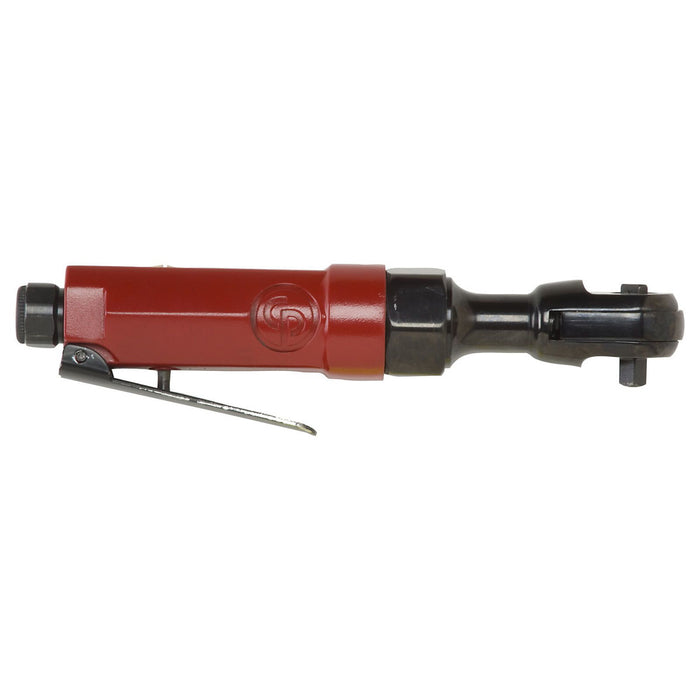

Chicago Pneumatic CP824, 1/4" Air Ratchet
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T025390
The Chicago Pneumatic CP824 1/4'' air ratchet wrench delivers the kind of compact, responsive performance that keeps technicians productive when working in confined engine bays and tight access points. Engineered for precision fastening, this pneumatic ratchet wrench operates at a free speed of 220 RPM, giving operators smooth, controlled torque application without the risk of over-tightening. With a maximum working torque of 17 Nm in reverse and a minimum working torque of 5 Nm, it handles a wide range of fastening tasks with consistent, reliable output across the torque range. Built to the exacting standards that have made Chicago Pneumatic a trusted name in professional workshops, this air ratchet wrench sits in the same respected family as the chicago pneumatic cp828 and cp828h series, sharing that familiar balance of durability and ergonomic design. The lightweight, slender body reduces operator fatigue during extended use, making it a natural choice for assembly lines, automotive workshops, and maintenance facilities where repetitive fastening work demands tools that perform shift after shift. The CP824 accepts standard 1/4'' drive sockets, making it immediately compatible with existing socket sets and keeping tool changeovers fast. Whether tackling interior trim components, small engine ancillaries, or light mechanical assemblies, this pneumatic ratchet wrench gives professionals the speed and accuracy needed to get the job done efficiently without sacrificing control.Product Feature: Extended length (7.75in / 197mm long) for ease of access in hard to reach places Lightweight tool (1.13 lbs. / 0.51 kg) for improved comfort About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 220 rpm
- Max working torque reverse: 17 Nm
- Max torque reverse: 17 Nm
- Min working torque reverse: 5 Nm
- Length (L): 197 mm
- Weight: 0.51 kg
- General: Subfamily
- Sound Power: 102 dB(A)
- Sound Pressure: 91 dB(A)
- Uncertainty vibration-K: 2 m/s²
- Vibration (m/s²): 4.1
- Vibration: 4.1 m/s²
- Air consumption at load: 7 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 10 mm
- Main Material type: Aluminium
- Output drive size (in): 1/4
- Output drive type: Sq
- Output retainer type: Ball detent
- Starting system: Lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
