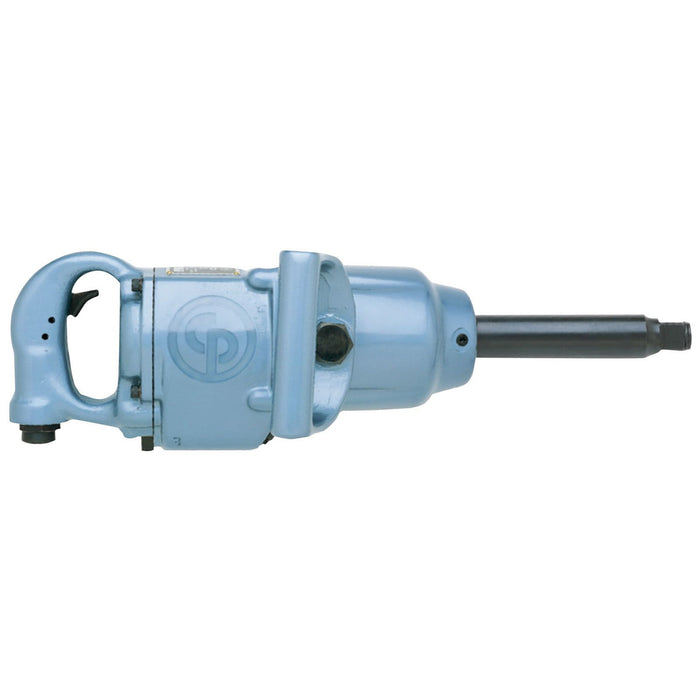

Chicago Pneumatic CP797SP6, 1" 5-Spline Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T018653
Delivering exceptional power in a compact, ergonomic package, the Chicago Pneumatic CP797SP6 gives demanding tradespeople and workshop professionals a genuine performance edge when tackling the toughest fastening and removal tasks. This 5 spline drive air impact wrench generates an impressive 1220 Nm of maximum working torque in forward and a formidable 1890 Nm in reverse, making stubborn or seized fasteners no match for its relentless output. The minimum working torque of 200 Nm provides precise, controlled application across a wide range of jobs, while the 4200 RPM free speed ensures rapid cycling between fasteners to keep productivity at its peak. As a premium cp impact wrench, the CP797SP6 is engineered with a robust 5 spline anvil system designed to handle heavy-duty industrial and automotive workloads where standard square drive tools simply fall short. Its thoughtful, balanced construction reduces operator fatigue during extended use, and the air inlet design supports efficient, consistent airflow for reliable performance across demanding shift-length applications. Whether fitted to a workshop compressor on a commercial tyre bay, a heavy vehicle servicing hoist, or a busy fabrication line, this best air impact wrench from Chicago Pneumatic brings professional-grade durability and power together in a tool built to perform day after day. It is particularly well suited to truck and bus maintenance, agricultural machinery servicing, and any application requiring high-torque removal of large fasteners at speed.Product Feature: 1,400 ft.lbs (1,898 Nm) of max torque in reverse position for high productivity Metal housing and rocking dog impact mechanism for high durability and smooth operation Convenient reverse valve and teasing trigger for better comfort in use About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 1220 Nm
- Max torque reverse: 1890 Nm
- Min working torque fwd: 200 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 121 dB(A)
- Sound Pressure: 110 dB(A)
- Uncertainty vibration-K: 4.3 m/s²
- Vibration (m/s²): 12.8
- Vibration: 12.8 m/s²
- Free Speed: 4200 rpm
- Length (L): 565 mm
- Power weight ratio: 140 Nm/kg
- Weight: 13.4 kg
- Blow per minute: 1080
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Oil bath
- Handle type: D-handle
- Impact mechanism: Double rocking dog
- Main Material type: Aluminium
- Output drive size (in): #5 Spline
- Output drive type: 5 Spline
- Output retainer type: Friction ring
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
