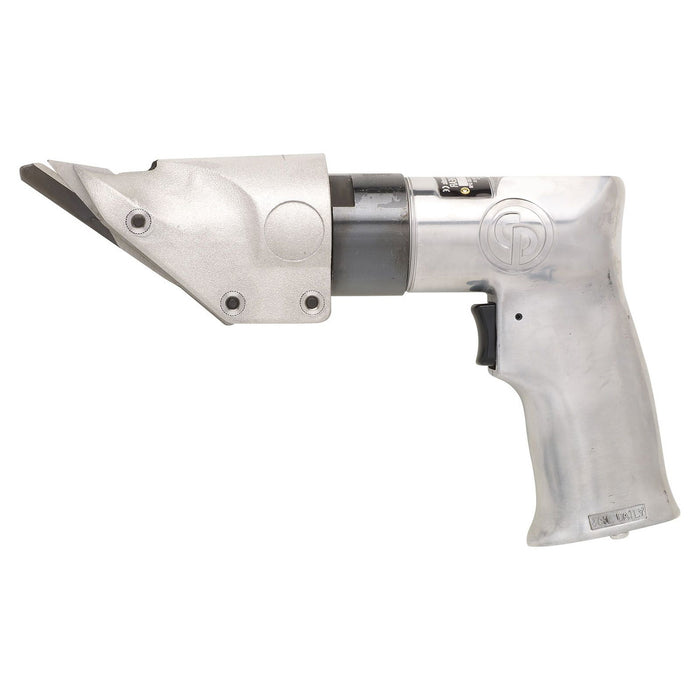

Chicago Pneumatic CP785S, 258 W Air Metal Shears
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T023200
The Chicago Pneumatic CP785S metal shears deliver professional-grade cutting performance for fabricators and metalworkers who demand precision and reliability on every job. Engineered with a robust 258 W power output and an impressive 2400 strokes per minute, these pneumatic shears cut through aluminium and other metallic materials with exceptional speed and clean, burr-free results that reduce finishing time significantly. Constructed with a lightweight yet durable aluminium body, the CP785S is designed for extended use without operator fatigue, making it an ideal choice for production environments and workshop settings alike. The 22 mm blade length provides excellent control and manoeuvrability, allowing users to follow curves, contours, and straight lines with consistent accuracy. The ergonomic design ensures a secure, comfortable grip even during prolonged cutting sessions, enhancing both safety and productivity. As part of Chicago Pneumatic's trusted range of air-powered cutting tools, these pneumatic metal shears connect effortlessly to standard compressed air supplies, delivering consistent power throughout every cut. The Chicago Pneumatic CP785S is well suited for automotive bodywork, HVAC ductwork fabrication, roofing applications, and general sheet metal work where clean cuts and tool longevity are non-negotiable. Whether tackling light gauge aluminium panels or intricate metalwork on the production floor, this tool provides the cutting performance professionals rely on day after day.Product Feature: Powerful motor with 0.5 hp (370 W) which can cut metal up to 18-gauge (1.1 mm - 0.04'') Triple idler planetary gearing for better reliability Ergonomic handle design About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Application: Metallic
- Main Material type: Aluminium
- Stroke per minute: 2400
- Blade length: 22 mm
- Cutting capacity aluminium: 2 mm
- Cutting capacity steel: 1.3 mm
- Length (L): 229 mm
- Stroke: 2.2 mm
- Weight: 0.86 kg
- Max power: 258 W
- Sound Power: 84 dB(A)
- Sound Pressure: 95 dB(A)
- Uncertainty vibration-K: 3 m/s²
- Vibration: 3.2 m/s²
- Air consumption at load: 7.3 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
