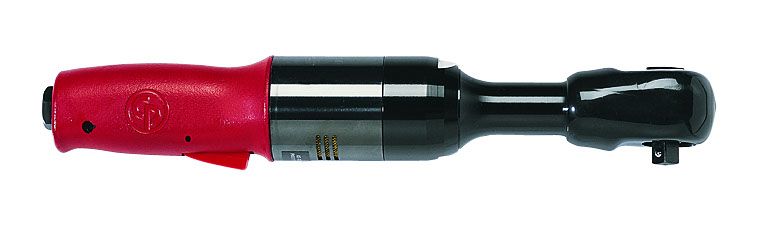

Chicago Pneumatic CP7830Q, 3/8" Air Ratchet
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941078306
Delivering the power and precision that professional mechanics demand, the Chicago Pneumatic CP7830Q 3/8'' air ratchet wrench is engineered to tackle demanding fastening tasks with confidence and control. Built for high-volume workshop environments, this pneumatic ratchet wrench combines a robust 122 Nm maximum reverse torque output with a smooth 190 rpm free speed, giving technicians the performance needed to drive and remove fasteners quickly without sacrificing accuracy. The CP7830Q features a working torque range spanning 13 Nm to 122 Nm in reverse, making it equally capable of handling delicate assemblies and heavily corroded fixings. Its 3/8'' square drive is a versatile fit for the most common socket sizes found across automotive, industrial, and maintenance applications, reducing the need to switch between tools mid-job. The compact, ergonomic housing keeps operator fatigue to a minimum during extended use, a critical advantage in production line settings or busy service bays. As a genuine Chicago Pneumatic air ratchet wrench, the CP7830Q is built to the same exacting standards as the respected cp828 air ratchet series, ensuring long service life and consistent torque delivery over thousands of cycles. This tool is an ideal choice for automotive technicians removing wheel bolts, suspension components, or engine bay fasteners, as well as engineers performing repetitive assembly tasks where speed and reliability are equally essential.Product Feature: Adjustable side exhaust and low noise for improved comfort Progressive teasing throttle to better adjust the torque Grease fitting on the reverse button for easier lubrication Sturdy aluminium alloy head and CP's patented TriSpring anti-slip head design with protective head cover for higher durability About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 190 rpm
- Max working torque reverse: 122 Nm
- Max torque reverse: 122 Nm
- Min working torque reverse: 13 Nm
- Length (L): 305 mm
- Weight: 1.2 kg
- General: Subfamily
- Sound Power: 96 dB(A)
- Sound Pressure: 85 dB(A)
- Uncertainty vibration-K: 1.4 m/s²
- Vibration (m/s²): 4.1
- Vibration: 4.1 m/s²
- Air consumption at load: 8.7 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 10 mm
- Main Material type: Composite
- Output drive size (in): 3/8
- Output drive type: Sq
- Output retainer type: Ball detent
- Starting system: Lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
