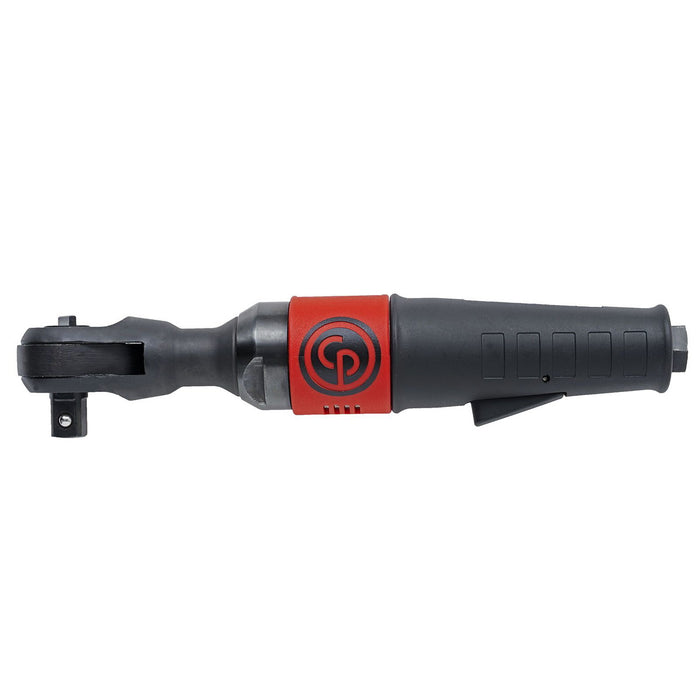

Chicago Pneumatic CP7829H, 1/2" Air Ratchet
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941078294
The Chicago Pneumatic CP7829H delivers the precision and power that professional mechanics and workshop technicians demand from a reliable half-inch pneumatic ratchet wrench. Engineered for demanding environments where speed and control are equally critical, this air ratchet wrench combines a respectable 74 Nm maximum working torque in reverse with a smooth 225 rpm free speed, giving operators the confidence to tackle fastener removal and installation across a wide range of applications without compromising on feel or accuracy. Built to Chicago Pneumatic's exacting standards, the CP7829H operates with an air consumption of just 11 l/s at free speed, making it an efficient choice for workshops conscious of compressor load and energy costs. The maximum reverse torque peaks at 95 Nm, providing ample breakaway force for stubborn or corroded fasteners that would otherwise slow productivity to a halt. Its half-inch square drive is compatible with a broad selection of standard sockets, ensuring versatility across automotive, agricultural, and industrial maintenance tasks. Those familiar with the chicago pneumatic cp828 lineage will recognise the same commitment to ergonomic design and long service life that has made this series a trusted name on the workshop floor. The air ratchet wrench format suits technicians working in confined engine bays, underneath vehicles, or around complex machinery where a full-size impact wrench simply cannot reach. The CP7829H is the go-to pneumatic ratchet wrench for any professional who needs consistent, repeatable torque in a compact and dependable package.Product Feature: Comfortable ultra-compact (6.6 in/169mm long), lightweight (1.1 lbs/0.5 kg) tool that allows ease of access in hard-to-reach areas Adjustable side exhaust avoids blowing dirt and dust Ergonomic composite grip insulates operators' hands from cold Teasing trigger to better adjust the torque with 225 rpm About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 225 rpm
- Air consumption at free speed: 11 l/s
- Max working torque reverse: 74 Nm
- Max torque reverse: 95 Nm
- Min working torque reverse: 15 Nm
- Length (L): 272 mm
- Weight: 1.24 kg
- General: Subfamily
- Sound Power: 96 dB(A)
- Sound Pressure: 85 dB(A)
- Uncertainty vibration-K: 2.5 m/s²
- Vibration (m/s²): 8.6
- Vibration: 8.6 m/s²
- Air consumption at load: 5.2 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPTF
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 10 mm
- Main Material type: Composite
- Output drive size (in): 1/2
- Output drive type: Sq
- Output retainer type: Ball detent
- Starting system: Lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
