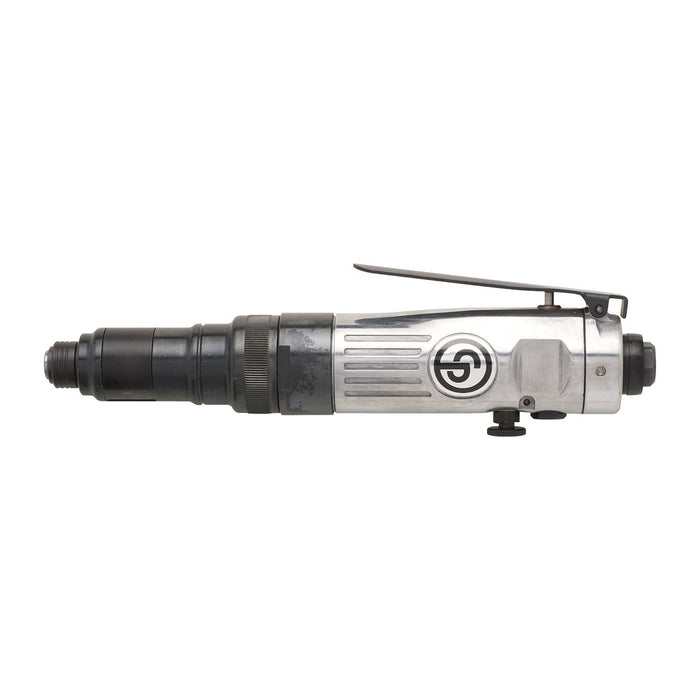

Chicago Pneumatic CP782, 1/4" Hex Air Screwdriver
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T025097
Designed to deliver consistent, repeatable fastening performance on light assembly lines, the Chicago Pneumatic CP782 gives production teams a reliable pneumatic torque screwdriver that keeps pace with demanding output targets without sacrificing control. Weighing in as a compact, ergonomically balanced air screwdriver, it reduces operator fatigue during high-cycle applications where precision and comfort must work hand in hand. At the heart of the CP782 is a rotary-adjustable non shut-off clutch that allows operators to dial torque output anywhere between 3.5 Nm and a maximum of 4.97 Nm in forward drive, making it a genuinely versatile pneumatic torque driver suited to a range of fastener sizes and material sensitivities. The 1/4-inch hex drive accepts standard bits for rapid changeovers, while the 1,800 RPM free speed keeps cycle times short without over-driving delicate components. The rotary adjustment mechanism means torque settings can be changed quickly on the line without specialist tools, giving supervisors the flexibility to adapt to new assemblies on the fly. As an air torque screwdriver, the CP782 draws on Chicago Pneumatic's long heritage in pneumatic tool engineering, offering a durable, low-maintenance design that suits electronics assembly, automotive interior trim, appliance manufacturing, and any application where consistent torque delivery to small fasteners is critical to product quality and downstream reliability.Product Feature: Fast screw fastening in cushion clutch and high torque for better productivity External clutch adjustment Convenient single-handed forward/reverse valve for better ease of use Progressive lever start and suspension bail About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max torque in forward: 4.97 Nm
- Min torque in forward: 3.5 Nm
- Torque Control System: Non shut-off-clutch
- Adjustment: Rotative ring
- Body: Aluminium
- Clutch housing: Steel
- Clutch Type: Cushion clutch
- Handle type: Straight handle
- Main Material type: Aluminium
- Output drive size (in): 1/4
- Output drive type: Hex
- Output retainer type: Quick change
- Reversible: Yes
- Starting system: Lever
- Free Speed: 1800 rpm
- Air consumption at free speed: 7.6 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Length (L): 245 mm
- Weight: 1.13 kg
- Sound Power: 104.9 dB(A)
- Sound Pressure: 93.9 dB(A)
- Vibration (m/s²): <2.5
-
New Grade - 24 Months Warranty from purchase is available on this product.
