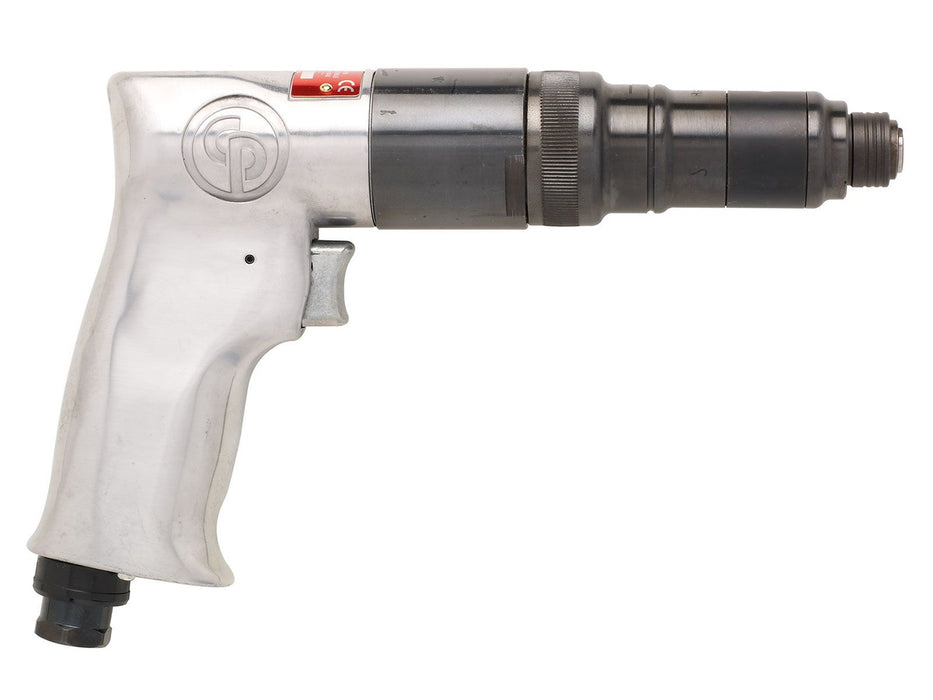

Chicago Pneumatic CP781, 1/4" Hex Air Screwdriver
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T025096
Delivering precise, repeatable fastening performance on demanding production lines, the Chicago Pneumatic CP781 quarter-inch hex cushion screwdriver gives assembly teams a reliable air torque screwdriver built for consistent output across long working shifts. Engineered with a torque range spanning 6.2 Nm to 11.3 Nm in forward drive, this pneumatic torque screwdriver allows operators to dial in exactly the right clamping force through its smooth rotary adjustment system, eliminating the guesswork that leads to stripped fasteners or under-tightened joints. Running at a controlled 800 RPM, the CP781 balances speed with accuracy in a way that suits medium-torque assembly applications where both productivity and joint integrity matter. The non shut-off clutch torque control system provides a cushioned driving action that absorbs the reactive forces common in high-cycle screwdriving, reducing operator fatigue without sacrificing throughput. The standard quarter-inch hex bit fitting ensures instant compatibility with the widest range of drive accessories, keeping changeover times to an absolute minimum. Compact and well-balanced, this pneumatic screwdriver with torque control integrates naturally into existing compressed air tool setups wherever a lightweight yet capable fastening solution is required. It is particularly well suited to automotive component assembly, electronics manufacturing, and light fabrication environments where teams need a dependable air torque driver that performs reliably shift after shift without constant recalibration.Product Feature: Fast screw fastening in cushion clutch high torque for better productivity External clutch adjustment Convenient single-handed forward/reverse for better ease of use Robust aluminium body and steel clutch housing Convenient single-handed forward/reverse for better ease of use About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max torque in forward: 11.3 Nm
- Min torque in forward: 6.2 Nm
- Torque Control System: Non shut-off-clutch
- Adjustment: Rotative ring
- Body: Aluminium
- Clutch housing: Steel
- Clutch Type: Cushion clutch
- Handle type: Pistol
- Output drive size (in): 1/4
- Output drive type: Hex
- Output retainer type: Quick change
- Reversible: Yes
- Starting system: Trigger
- Free Speed: 800 rpm
- Air consumption at free speed: 11.8 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Height (H): 150 mm
- Length (L): 226 mm
- Weight: 1.36 kg
- Sound Power: 110.5 dB(A)
- Sound Pressure: 99.5 dB(A)
- Vibration (m/s²): <2.5
-
New Grade - 24 Months Warranty from purchase is available on this product.
