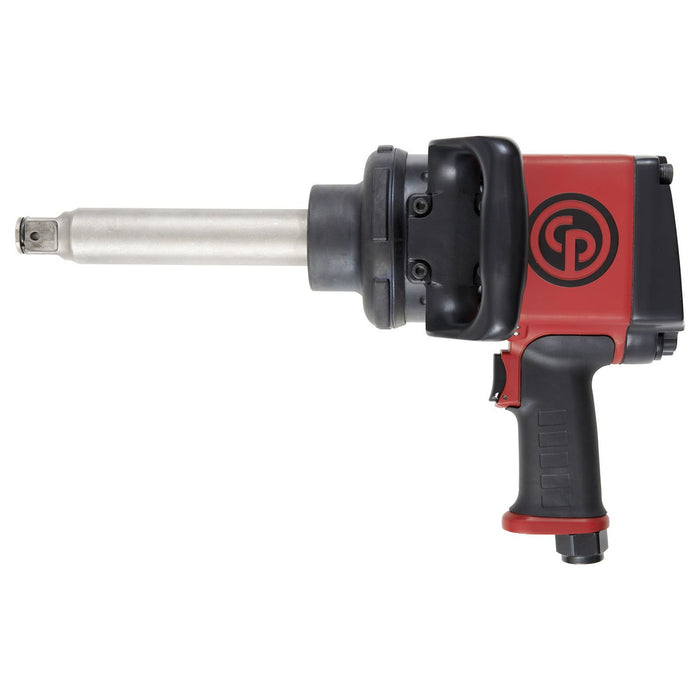

Chicago Pneumatic CP7776-6, 1" Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077766
Delivering the raw power that demanding industrial environments require, the Chicago Pneumatic CP7776-6 1'' air impact wrench stands as one of the most capable heavy-duty pneumatic tools available for professional workshops and field operations. Built for applications where torque output is non-negotiable, this chicago pneumatic impact wrench produces a formidable 2070 Nm of maximum working torque in forward and a punishing 2400 Nm in reverse, making light work of the most stubborn fasteners encountered in heavy machinery maintenance, truck and bus servicing, and large-scale construction projects. The CP7776-6 operates at a free speed of 5000 RPM, ensuring rapid socket engagement and fast cycle times that keep productivity high across extended shifts. With a minimum working torque of 956 Nm in forward, operators benefit from a broad usable torque range that accommodates varied fastener sizes without constant tool changes. As a cp impact wrench engineered for 1'' drive applications, it pairs naturally with heavy-duty sockets and drive accessories demanded by professional trades. The robust twin-hammer mechanism delivers consistent, repeatable performance across thousands of cycles, while the ergonomic housing helps reduce operator fatigue during prolonged use. Whether tackling suspension components on heavy commercial vehicles, loosening seized industrial bolts, or working through large structural assemblies, this air impact wrench from Chicago Pneumatic gives tradespeople and engineers the confidence that every fastener will yield.Product Feature: Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability TPR handle and side handle swivel in 4 positions for maximum comfort Power control regulators at the back of the tool with 3 reverse and 3 forward positions Angled down exhaust blows air away from work place Rubber bumpers protect both applications & tool About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 2070 Nm
- Max torque reverse: 2400 Nm
- Min working torque fwd: 956 Nm
- Torque limited: No
- Air consumption at load: 15 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 104 dB(A)
- Sound Pressure: 93 dB(A)
- Uncertainty vibration-K: 2.8 m/s²
- Vibration (m/s²): 8.7
- Vibration: 8.7 m/s²
- Free Speed: 5000 rpm
- Length (L): 447 mm
- Power weight ratio: 190 Nm/kg
- Side to Center: 109 mm
- Weight: 12.6 kg
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mechanism: Pinless rocking dog
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
