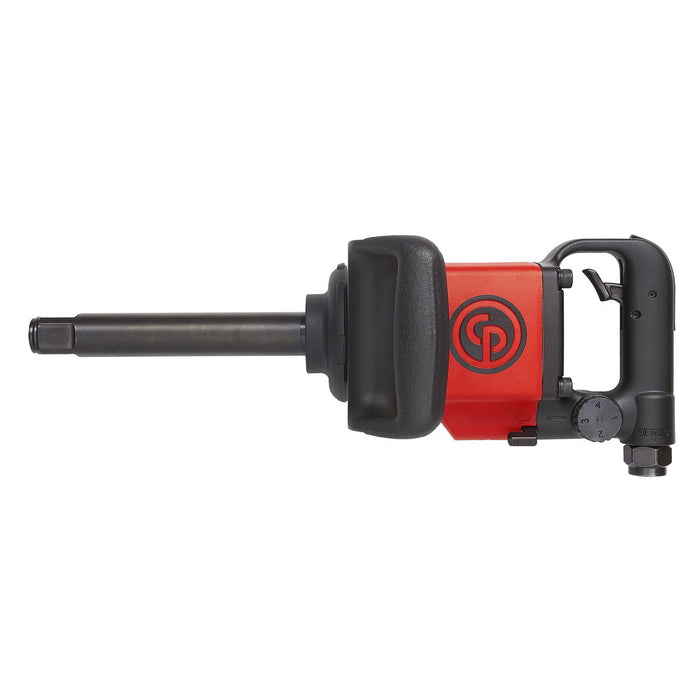

Chicago Pneumatic CP7773D-6, 1" Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077737
The Chicago Pneumatic CP7773D-6 delivers the kind of raw, dependable power that heavy-duty workshops and professional mechanics demand without compromise. Engineered as a full-size 1-inch drive air impact wrench, this CP impact wrench is built for the most gruelling fastening and removal tasks where torque output is non-negotiable. With a maximum forward working torque of 1,450 Nm and an impressive reverse torque of 1,760 Nm, the CP7773D-6 tackles stubborn, seized fasteners with authority. The 6,600 RPM free speed ensures rapid socket rotation, dramatically reducing cycle times on high-volume jobs. A minimum forward working torque of 340 Nm gives operators meaningful range across varied applications, and the tool's non-torque-limited design allows the full force of the motor to be applied when conditions demand it. As a premium chicago pneumatic impact wrench, the CP7773D-6 benefits from Chicago Pneumatic's renowned engineering heritage, delivering consistent performance run after run. The robust 1-inch square drive provides a confident, secure fit for large sockets used in truck, agricultural, mining, and heavy plant maintenance environments. Its balanced construction reduces operator fatigue during extended use, while durable internal components stand up to the rigours of continuous workshop operation. This is the best air impact wrench choice for fleet workshops, tyre service centres, and industrial maintenance teams requiring a reliable, high-torque pneumatic tool that performs day in, day out on heavy commercial and off-highway vehicles.Product Feature: Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability TPR handle and side handle swivel in 4 positions for maximum comfort Power control regulators at the back of the tool with 3 reverse and 3 forward positions Angled down exhaust blows air away from work place Rubber bumpers protect both applications & tool About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 1450 Nm
- Max torque reverse: 1760 Nm
- Min working torque fwd: 340 Nm
- Torque limited: No
- Air consumption at load: 19 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 109 dB(A)
- Sound Pressure: 98 dB(A)
- Uncertainty vibration-K: 3.3 m/s²
- Vibration (m/s²): 12
- Vibration: 12 m/s²
- Free Speed: 6600 rpm
- Air consumption at free speed: 26 l/s
- Length (L): 445 mm
- Side to Center: 45 mm
- Weight: 7.4 kg
- Body: Composite
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Twin hammer
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Friction ring
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
