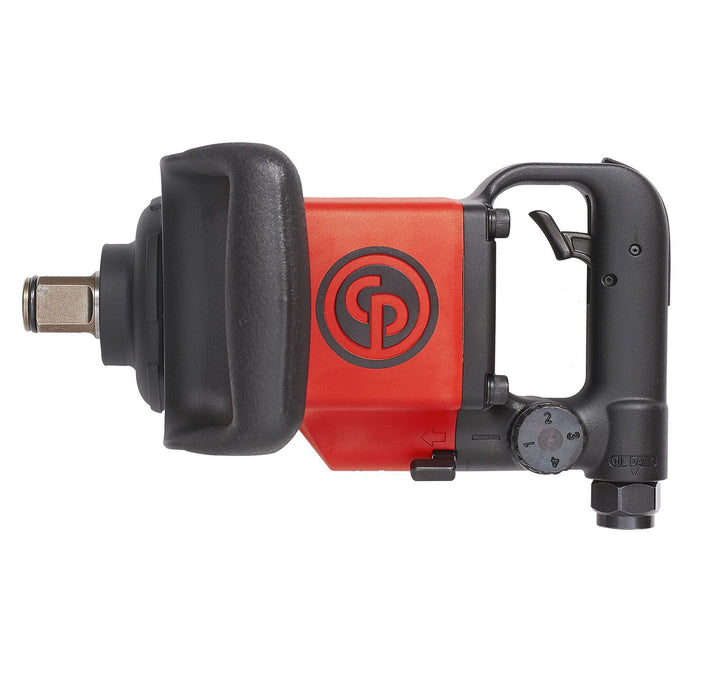

Chicago Pneumatic CP7773D, 1" Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077731
The Chicago Pneumatic CP7773D delivers the raw power and reliability that heavy-duty professionals demand, making it one of the most capable 1-inch drive air impact wrenches available for industrial and commercial applications. Engineered to handle the most stubborn fasteners, this chicago pneumatic impact wrench produces an exceptional 1450 Nm of maximum working torque in forward and a formidable 1760 Nm in reverse, ensuring even seized or over-torqued bolts are no match for its twin-hammer mechanism. With a free speed of 6600 RPM, the CP7773D responds instantly and maintains consistent performance across extended work cycles, reducing operator fatigue without sacrificing output. A minimum working torque of 340 Nm in forward gives operators genuine versatility across a wide range of fastener sizes and applications. Built to Chicago Pneumatic's exacting standards, this cp impact wrench features a robust housing designed to withstand the punishing conditions found on workshop floors, construction sites, and heavy vehicle maintenance bays. The ergonomic grip and well-balanced design allow for confident control even when working overhead or in awkward positions. For truck fleet workshops, mining operations, agricultural equipment servicing, and large-scale manufacturing environments where a best air impact wrench is non-negotiable, the CP7773D stands as the definitive 1-inch drive solution that combines brute torque with everyday dependability.Product Feature: Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability TPR handle and side handle swivel in 4 positions for maximum comfort Power control regulators at the back of the tool with 3 reverse and 3 forward positions Angled down exhaust blows air away from work place Rubber bumpers protect both applications & tool About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 1450 Nm
- Max torque reverse: 1760 Nm
- Min working torque fwd: 340 Nm
- Torque limited: No
- Air consumption at load: 19 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 109 dB(A)
- Sound Pressure: 98 dB(A)
- Uncertainty vibration-K: 3.3 m/s²
- Vibration (m/s²): 12
- Vibration: 12 m/s²
- Free Speed: 6600 rpm
- Air consumption at free speed: 26 l/s
- Length (L): 290 mm
- Side to Center: 45 mm
- Weight: 6.6 kg
- Body: Composite
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Twin hammer
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Friction ring
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
