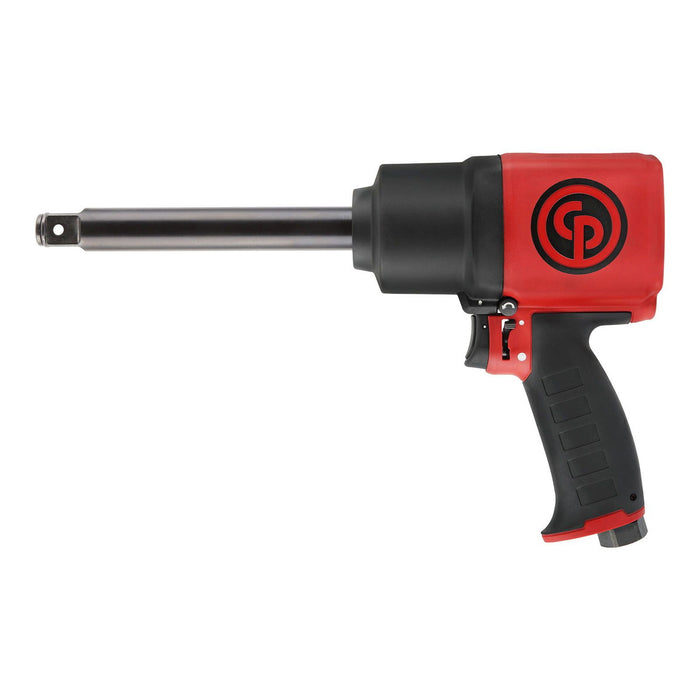

Chicago Pneumatic CP7769-6, 3/4" Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077697
Delivering relentless torque where heavy-duty fastening demands nothing less, the Chicago Pneumatic CP7769-6 3/4'' air impact wrench is built for professionals who cannot afford downtime on the job. Engineered to handle the most stubborn fasteners, this cp impact wrench unleashes an impressive 1,460 Nm of maximum working torque in forward and a formidable 1,950 Nm in reverse, making light work of seized bolts and high-torque applications that would defeat lesser tools. With a minimum working torque of 407 Nm in forward, operators benefit from a broad torque range that adapts to varying task requirements without tool changes. Running at a free speed of 6,500 RPM, this chicago pneumatic impact wrench combines raw power with rapid fastening cycles to keep productivity high across extended shifts. The 3/4'' square drive is perfectly sized for truck maintenance, heavy plant equipment, and industrial assembly lines where larger fasteners are the norm. Precision-engineered internal components ensure consistent power delivery and long service life, even under continuous professional use. The robust construction reflects Chicago Pneumatic's reputation for durability in demanding workshop and field environments. Whether tackling wheel hubs on commercial vehicles, servicing agricultural machinery, or maintaining construction equipment, the CP7769-6 is the air impact wrench professionals reach for when maximum torque and uncompromising reliability are the only acceptable standards.Product Feature: 1,440 ft.lbs (1,950 Nm) of max torque in reverse position for high productivity Composite housing and twin hammer impact mechanism for high durability Due to its composite motor housing, it is both lightweight and compact, offering improved comfort. One-hand power adjustment and reverse system - S2S technology - thereby limiting wrist and arm fatigue. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 1460 Nm
- Max torque reverse: 1950 Nm
- Min working torque fwd: 407 Nm
- Torque limited: No
- Air consumption at load: 14 l/s
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 107.8 dB(A)
- Sound Pressure: 96.8 dB(A)
- Uncertainty vibration-K: 1.5 m/s²
- Vibration (m/s²): 12.97
- Vibration: 13 m/s²
- Free Speed: 6500 rpm
- Height (H): 220 mm
- Length (L): 350 mm
- Width (W): 84 mm
- Power weight ratio: 520 Nm/kg
- Weight: 3.75 kg
- Blow per minute: 1200
- Body: Composite
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mechanism: Twin hammer
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Dual
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
