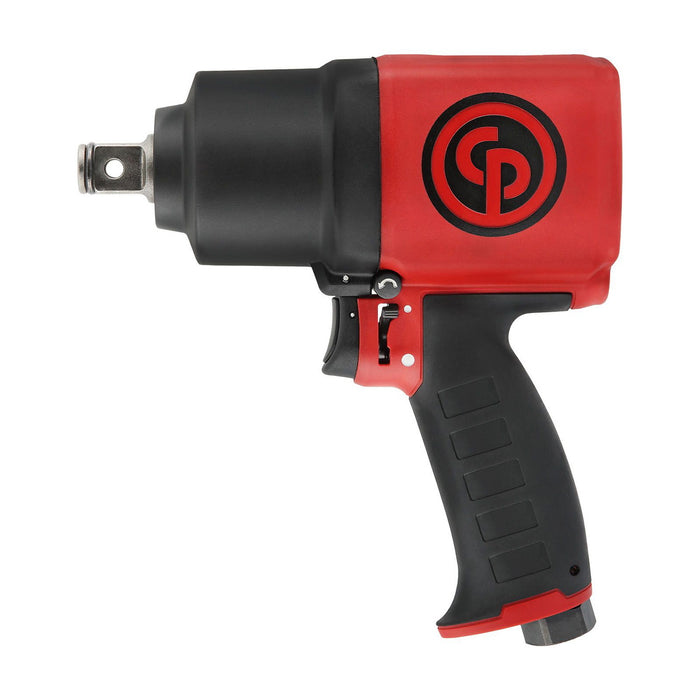

Chicago Pneumatic CP7769, 3/4" Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077691
Delivering exceptional power and reliability on the toughest fastening jobs, the Chicago Pneumatic CP7769 3/4'' air impact wrench is the professional's choice for heavy-duty industrial and automotive applications. Built to handle demanding workloads, this cp impact wrench produces an impressive maximum working torque of 1,460 Nm forward and a formidable 1,950 Nm in reverse, ensuring stubborn fasteners are no match for its raw capability. With a minimum working torque of 407 Nm forward, the CP7769 offers a usable torque range that gives operators genuine versatility across a wide variety of tasks. Running at a free speed of 6,500 RPM, this chicago pneumatic impact wrench delivers rapid, efficient performance that keeps productivity high throughout long shifts. The 3/4'' square drive is ideally suited to larger fastener sizes commonly encountered in truck maintenance, heavy equipment servicing, and structural assembly work, making it a natural step up from a standard air impact wrench when extra power is required. Designed with the rigorous demands of professional workshops and industrial environments in mind, the CP7769 combines robust construction with the performance characteristics that Chicago Pneumatic tools are renowned for worldwide. Whether tackling wheel removal on commercial vehicles, dismantling heavy machinery, or working through high-volume fastener applications on the production floor, this wrench provides the consistent torque output and durability that serious professionals depend on every day.Product Feature: 1,440 ft.lbs (1,950 Nm) of max torque in reverse position for high productivity Composite housing and twin hammer impact mechanism for high durability Due to its composite motor housing, it is both lightweight and compact, offering improved comfort. One-hand power adjustment and reverse system - S2S technology - thereby limiting wrist and arm fatigue. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 1460 Nm
- Max torque reverse: 1950 Nm
- Min working torque fwd: 407 Nm
- Torque limited: No
- Air consumption at load: 14 l/s
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 107.8 dB(A)
- Sound Pressure: 96.8 dB(A)
- Uncertainty vibration-K: 1.5 m/s²
- Vibration (m/s²): 12.97
- Vibration: 13 m/s²
- Free Speed: 6500 rpm
- Height (H): 220 mm
- Length (L): 200 mm
- Width (W): 84 mm
- Power weight ratio: 610 Nm/kg
- Weight: 3.15 kg
- Blow per minute: 1200
- Body: Composite
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mechanism: Twin hammer
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Dual
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
